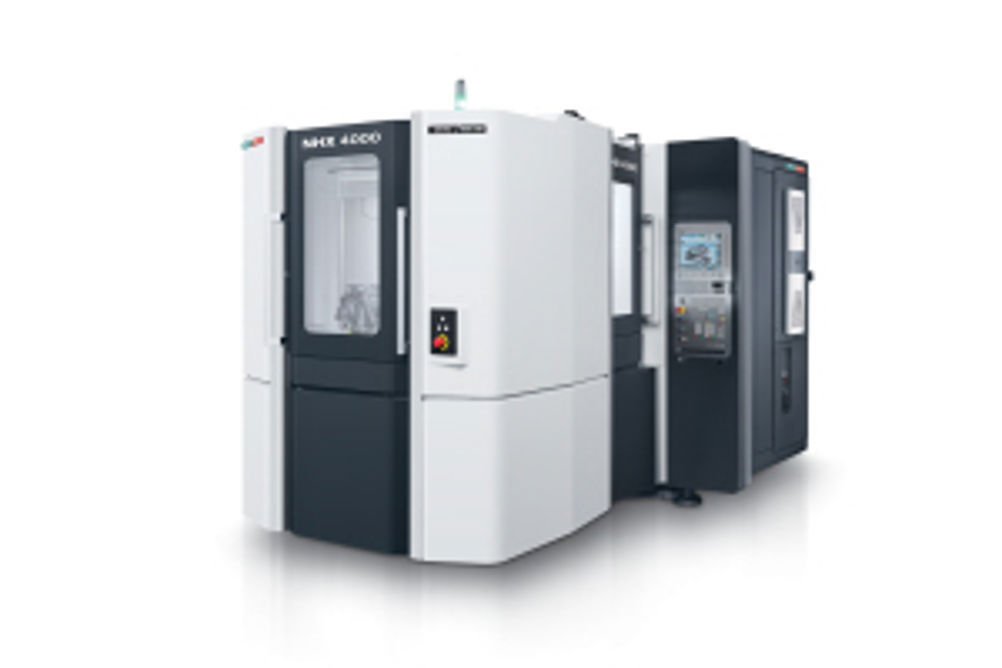

Occupying 12.5 m2 of floor space, the NX4000's 400 by 400 mm pallets take workpieces up to 630 mm dia by 900 mm high weighing up to 400 kg. Traverses in XYZ are 560 by 560 by 660 mm respectively. Circular accuracy, quoted as less than 1.7 µm (with 2,000 mm/min feed in X and Y as well as 100 mm radius), is combined with linear axes travel up 60 m/min with acceleration up to 9 m/s2 . Spindle speed in the standard version is up to 12,000 rpm with 110 Nm torque, while an optional high tech module provides a 30 kW, 8,000 rpm spindle.
The standard version 40 pocket capacity ring magazine can be optionally extended to 60 pockets. The toolchanger offers a chip-to-chip time of 2.8 sec. Pallet changing takes 8 sec.
Operating costs of the NHX4000 are said to be lower than those of predecessor models with energy demand decreased by up to 50%. This is due to the small number of servo motors and the use of LED illumination. The hydraulic pressure pump is automatically stopped in standby mode.
Technical Data
XYZ axes--560 by 560 by 660 mm
Pallet size --400 by 400 mm
Max pallet load --400 kg
Integrated motor spindle SK40 --12,000 rpm
Power (40/100 % DC) --20/20 kW
Torque (40/100 % DC) --110 / 55 Nm
Ring tool magazine --40 pockets
Chip-to-chip --2.8 sec minimum
Pallet changing time --8 sec
DMG SlimLine control with 15 inch screen Siemens 840D
Mori Seiki control panel MAPPS IV (MSX-853 IV)
This product was unveiled at the DMG/Mori Seiki Open House in Pfronten, Germany in February 2012 - see full article here
