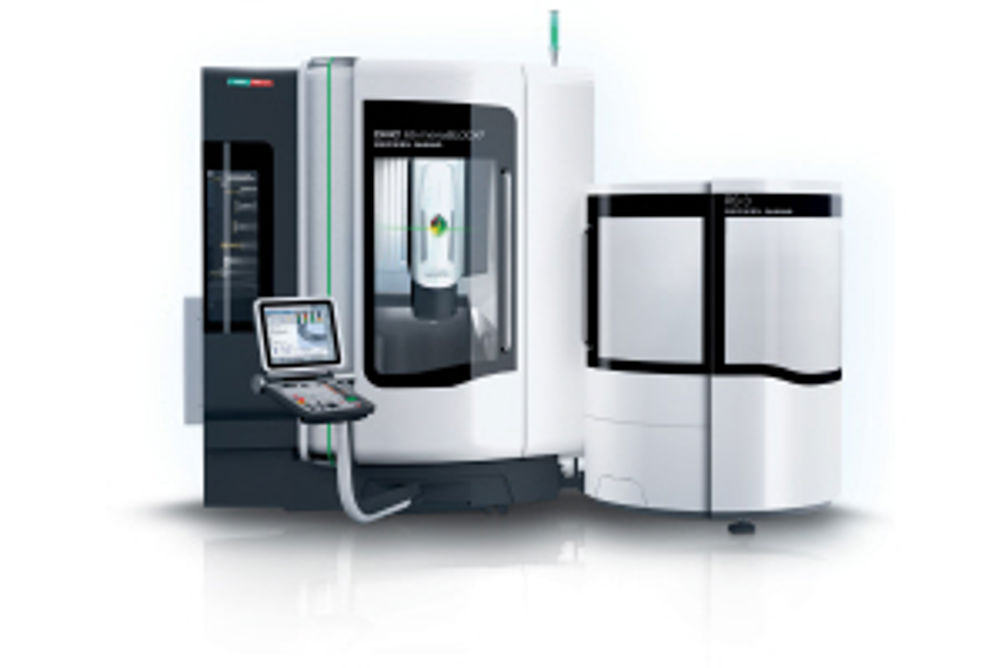

The machine requires 16.5 m2 of floor space and, says the company, the combination of highly productive 5-axis milling machine and separately accessible pallet changer reduces set-up times and leaves users with enough play for flexible planning.
The 500 by 500 mm pallets can take workpieces up to 630 mm dia and 500 mm high and weighing up to 500 kg and DMG/Mori Seiki believes the capabilities of the DMC 65 monoBlock will be most fully exploited in single piece machining.
The work area, which houses a fast swivel-round table, accommodates XYZ traverses of 650 by 650 by 560 mm respectively. The 30-pocket tool magazine (optionally up to 180) can be easily operated from the front, says DMG/Mori Seiki, and the swivel blade exchanger enables chip-to-chip times of 4.9 sec. All levels of tool magazine configuration are integrated directly into the machine, so that even a 120-pocket magazine requires no additional space.
In addition to the standard 10,000 rpm/83 Nm torque spindle DMG/Mori Seiki offers spindle options of 14,000 rpm/100 Nm, 18,000 rpm/119 Nm, 24,000 rpm/100 Nm – as well as strong spindle with 10,000 rpm/200 Nm.
A stainless steel steeply inclined inner lining facilitates chip disposal in the wide central chip conveyor.
Traverse paths (XYZ)--650 by 650 by 560 mm
Pallet size--500 by 500 mm
Max load weight--500 kg
Max workpiece dimensions (dia x height)--630 by 500 mm
Floor space including chip conveyor--16.5 m²
This product was unveiled at the DMG/Mori Seiki Open House in Pfronten, Germany in February 2012 - see full article here
