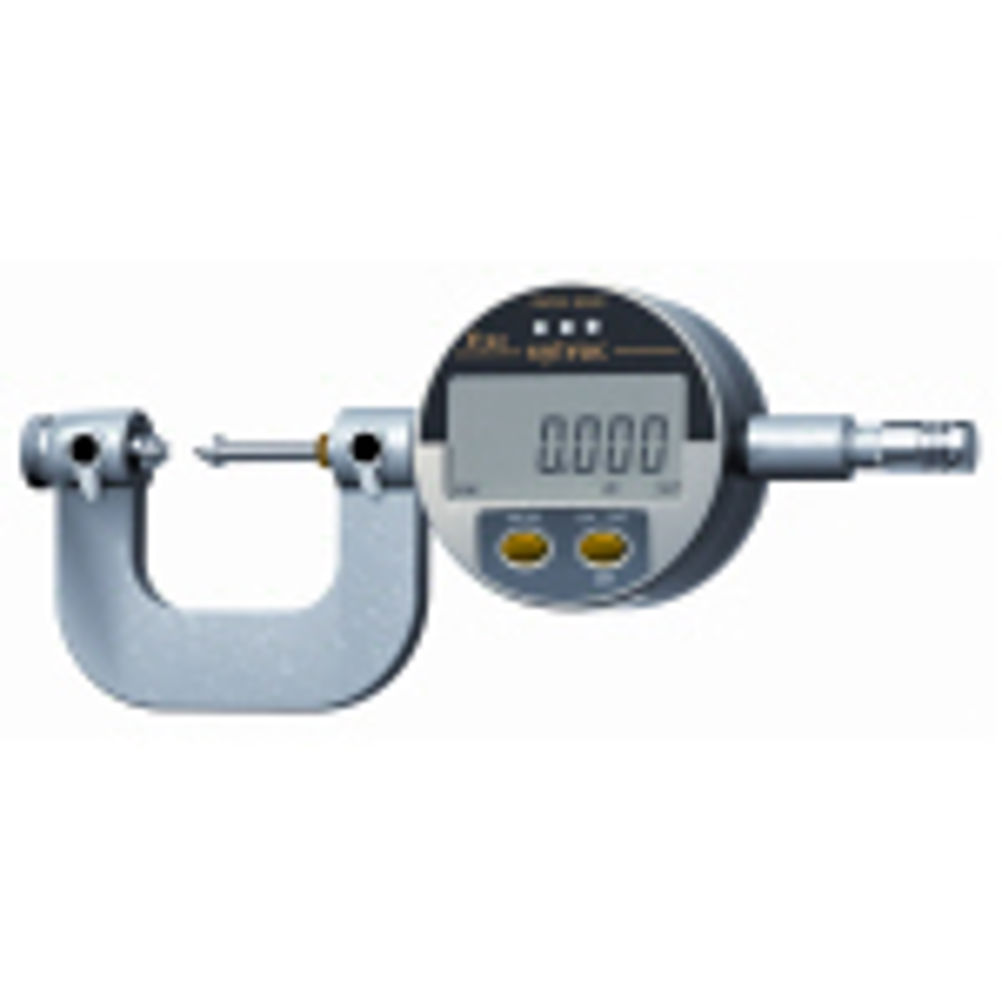

Sylvac's S_Cal FACTOR digital indicator allows multiplication factors, from 0 to 99,999, to be programmed into it.
The programmable multiplication factor means, the indicators are able to be used to display many different measuring units, including volume, force and distances.
The Sylvac digital indicators can be used for routines, such as, gauging the external diameter of cylindrical components held in 'V'-blocks, or they can be retrofitted to devices such as countersink gauges, measuring situations where conventional 1:1 ratio indicators would be rendered useless.
The 233 series is available with a 12.5 mm measuring range and the 213 series has ranges of 12.5 mm or 25 mm; both series have switchable resolutions of 0.01 mm or 0.001 mm.
Among their many features, the indicators have an inch/metric conversion, a pre-set facility, an RS232 output and, the 213 series, has a large rotating LED display; ideal when the gauges are being used in a horizontal orientation.
Bowers Metrology is the UK agent for Sylvac.
