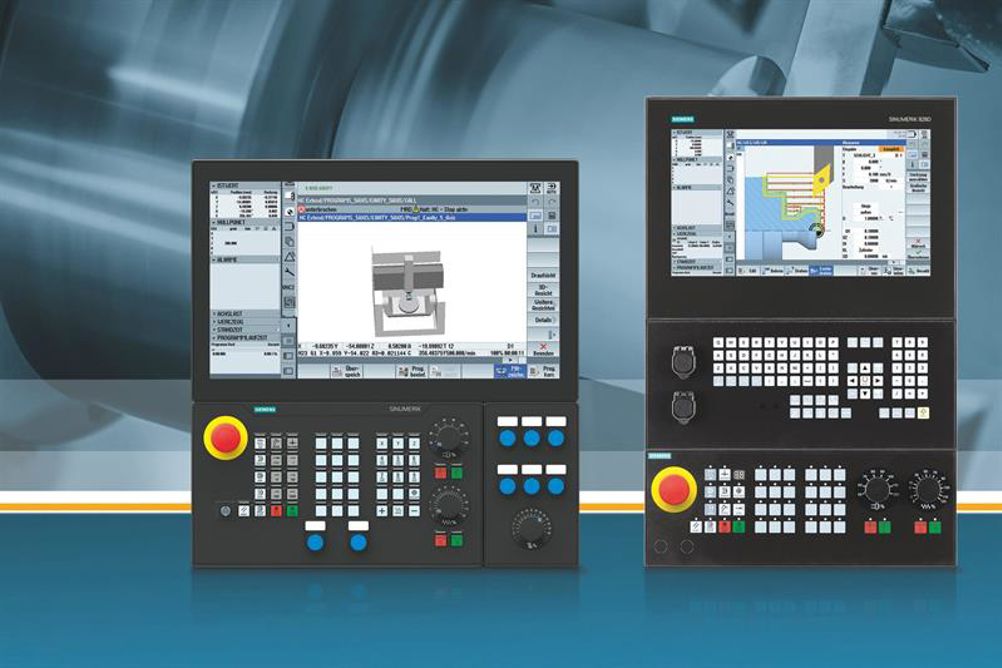

For 828D, a software update SW 4.8 SP3 with Panel Processing Unit (PPU) 4 has now been released. Users benefit not only from robust hardware but also improved connectivity through the ability to access central data and programs, increasing operating safety. Another feature of the update is an external PC remote control facility for the simplified connection of other authorised PCs via Virtual Private Computing (VPC). In addition, the application for MindSphere ManageMyMachines now enables connection of Sinumerik 828D controls to the cloud-based open IoT operating system MindSphere. For simple operation, Siemens offers Smart Operation, a robust multi-touch display used in conjunction with a side screen.
The CNC Sinumerik 828D also now offers a second control channel for use during milling operations, making available additional integration and control possibilities for automation systems or handling robots. Another feature is ‘Collision Avoidance Eco’, which works on the basis of protected areas and distances that can be configured by the user.
There is also a newly developed update designed to make life more convenient for users of the Sinumerik 840D sl. The Sinumerik Operate Display Manager allows the operator to fully leverage the possibilities offered by larger widescreen monitors, as both standard and machine-specific functions can be integrated into the user interface. These innovations are said to allow rapid and comprehensive access to all relevant data, and permit more efficient, simpler machine control, as well as accelerating and simplifying process workflows.
The facility for remote access to connected PCs enables the user to pull the PC display over to the panel and so remotely access any data and programs stored there. Working at the panel, the accessed data can be exchanged in the network over high-speed 1 GB Ethernet connections. Using the multi-touch Smart Operation panel in conjunction with the side screen, displays and active elements can be simply shown on screen, and modules are available from a preconfigured library to enable determination of the machine status. The side screen navigation allows additional windows to be opened or closed on the right or left of the main monitor. Particular benefits of the touch sensor are its resistance to electromagnetic interference and its ability to recognise and ignore contact by the ball of the thumb, so preventing unintentional operation.
The newly developed Display Manager for Sinumerik 840D sI allows individual operating concepts with extended functionality to be implemented with minimum effort by the machine operator. Here, the monitor surface can be divided into a number of display areas and the arrangement of their contents individually configured. Each different display area can be provided with its own menu, which can be populated with any optional touch buttons.
Another feature of the Sinumerik Operate Display Manager is multi-finger control, enabling faster, more intuitive working. This design makes it suitable for use on large displays with multi-touch capability, such as the 22” Sinumerik blackline plus panel.
