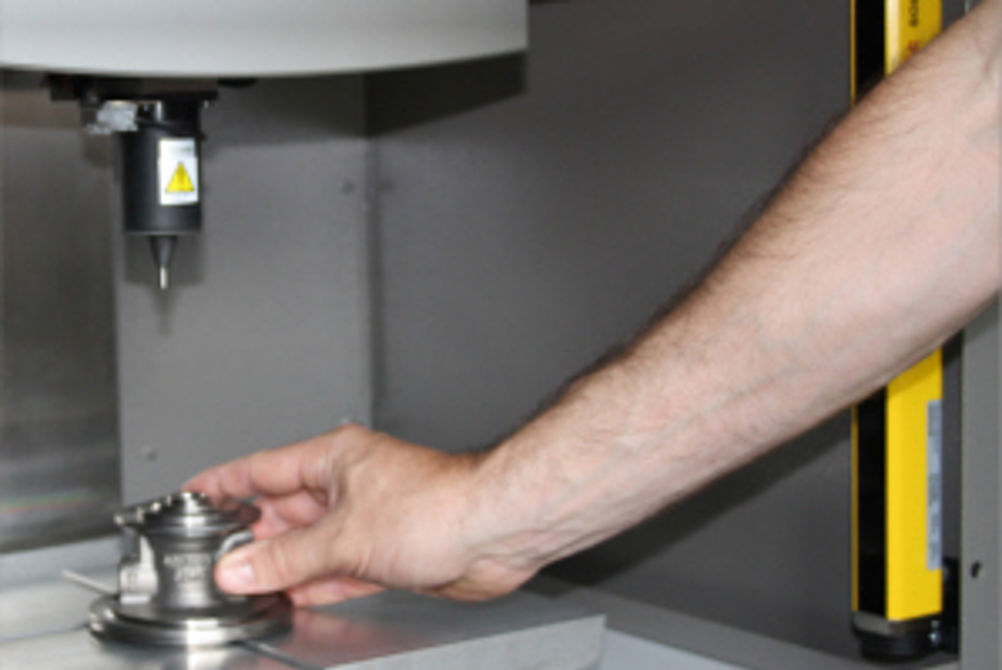

SIC c153 z-a dot marker incorporates autosense function for consistent marking depth

The quality of marking that can be achieved with the e8-c153 z-a SIC's autosense feature meets the needs of data matrix marking now increasingly required to meet aerospace part marking standards. Using its autosense function, the marking head descends automatically to the part so that the tungsten carbide stylus touches the component and then backs off a pre-programmed distance to ensure consistent marking depth. This means that manual Z-axis height adjustment is no longer necessary. Autosense also makes it feasible to mark stepped components and inside recesses automatically while the software can also be set up to abort the marking cycle if a component is not sensed. The proven e8 controller interface can accept manually input data, scan bar codes for error-proof data entry and accept data from a host computer. The free Windows software allows files to be copied and backed up. Files can also be created on a PC and downloaded to the controller or the controller can be run directly from the PC using the graphical display. Logos can also be imported and created. Optional software allows database connectivity. Both software programs are Windows XP and Windows 7, 64Bit compatible. The c153 z-a features high brightness LED lighting under the marking head to illuminate the component to assist set-up. The unit is robustly constructed on a cast base for a long life in demanding industrial environments. Available accessories and options include a newly designed box enclosure with a light curtain for an enhanced degree of operator safety; a rotary axis for marking around circumferences of components weighing up to 35 kg and tag feeders for high volume nameplate marking.
