Available in the UK from the Engineering Technology Group (ETG), maximum workpiece turning diameter is 640 mm diameter, turning length is 1,150 mm and distance between spindle centres is 1,350 mm.
Standard bar capacity is 65 mm, with options of 71, 80 and 90 mm diameter available (22 kW spindle power is available for larger bar capacity versions).
With the spindle inclined 90º, the tool spindle centre line can travel 125 mm below spindle centre line, via X-axis vertical movement of the spindle head. Y-axis travel is +/- 125 mm travel, considerably greater than many other machines in its class, says ETG.
In twin spindle configuration the both spindles offer 4,500rpm with 15kW powerful motors and up to 30kW cutting power can be available for turning shaft work with the synchronised spindles.High powered versions are also available for larger bar capacity versions at 22kW.

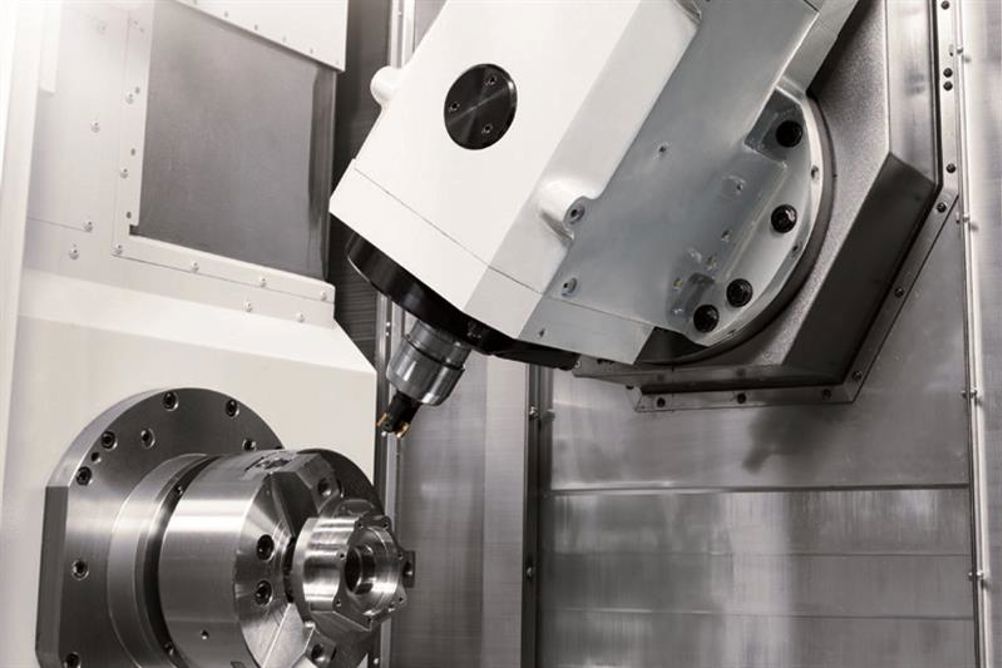

The NTRX 300 also features a unique in-built load/unload device and a 40-tool Capto C6 ATC as standard (60, 80, 120 optionally).
