Marking and reading solution for Data Matrix codes
1 min read

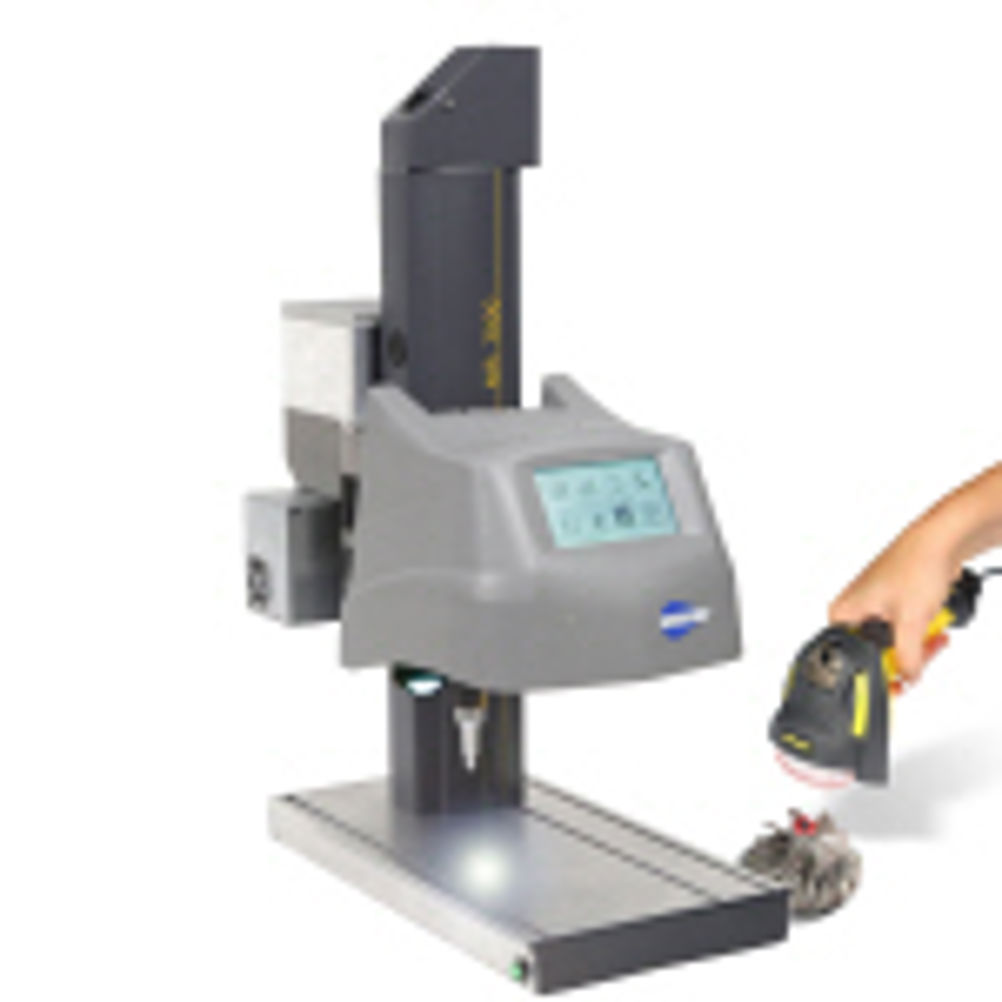

The MR7000, available from Technifor, is a complete solution for micro percussion marking Data Matrix codes, as well as, reading Data Matrix codes. The system provides a high-precision marking solution complying with quality standards in the aerospace, defence, automotive and other industries.
The precision of the guidance and the use of an electromagnetic stylus provide perfect control of positioning and impact force. The solution also includes a hand-held Data Matrix code reader, connected either to a PC or to the marking machine itself, so that the conformity of the marking on the part can be checked. Micro percussion marking cannot be forged, in contrast to ink-jet marking, for example.
The MR7000 is the ideal marking solution for aircraft parts, safety-critical parts and high added-value parts.
The MR7000 is particularly ergonomic and simple to use. The marking area is 100 mm x 120 mm, with a 280 mm motorised Z-axis. No manual adjustment is necessary: the electromagnetic stylus is fitted with a touch sensor which automatically locates the marking surface and positions itself correctly.
The marking program can be defined and loaded into the machine in advance by the supervisor (force, texts, etc.). All the operator then has to do is execute the markings, without having to adjust the programming. A marking log is saved in the machine and can easily be exported.
A wide range of accessories are available. The circular part marking system converts the MR7000 into a 4-axis machine (X, Y, Z, rotation) and does not require a PC. An automatic plate feeder with a 160-item capacity means that certain tasks can be automated.
