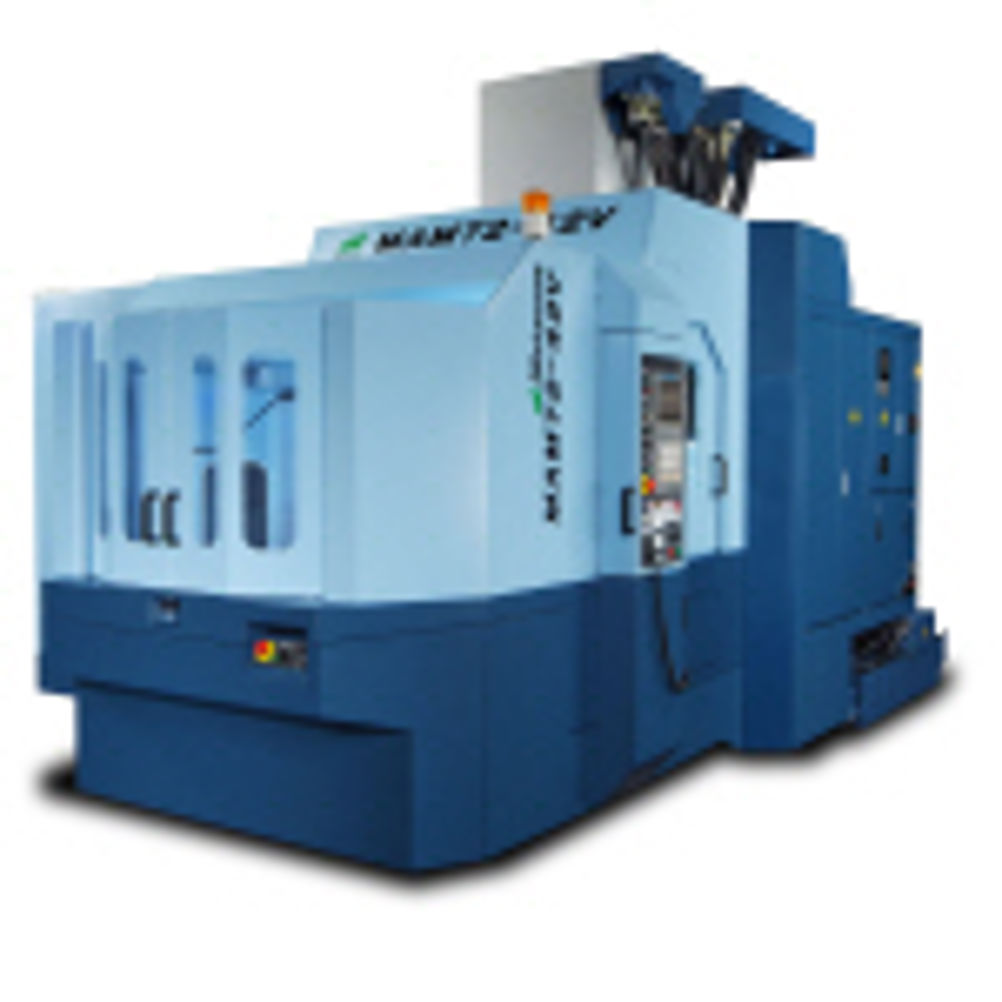

The MAM72-42V completes Matsuura's range of integrated and dedicated simultaneous 5-axis machine tools.
The machine specifications includes:
Movement and ranges
X-axis travel 520 mm (20.47 in.)
Y-axis travel 730 mm (28.74 in.)
Z-axis travel 510 mm (20.07 in.)
A-axis travel -110 ~ +10°
C-axis travel 360°
Table: Pallet
Pallet working surface 300 by 300 mm (11.81 by 11.81 in.)
Max. work size on the table 420 dia by H350 mm (16.53 dia by 13.77 in.)
Spindle (BT40)
Spindle speed range 40 ~ 12,000 min-1
Spindle bearing Inner Diameter 80 dia mm (3.14 in.)
Spindle motor power (continuous./short time) 7.5 / 11 kW (15HP)
Max. spindle torque 167 Nm / 630 min-1
Feedrate
Rapid traverse rate (X/Y/Z) 50,000 mm/min (1,968.5 ipm)
Rapid traverse rate (A/C) 30 / 50 min-1
Min. movement increment (X/Y/Z) 0.001 mm (0.000039 in.)
Min. movement increment (A/C) 0.001 deg
