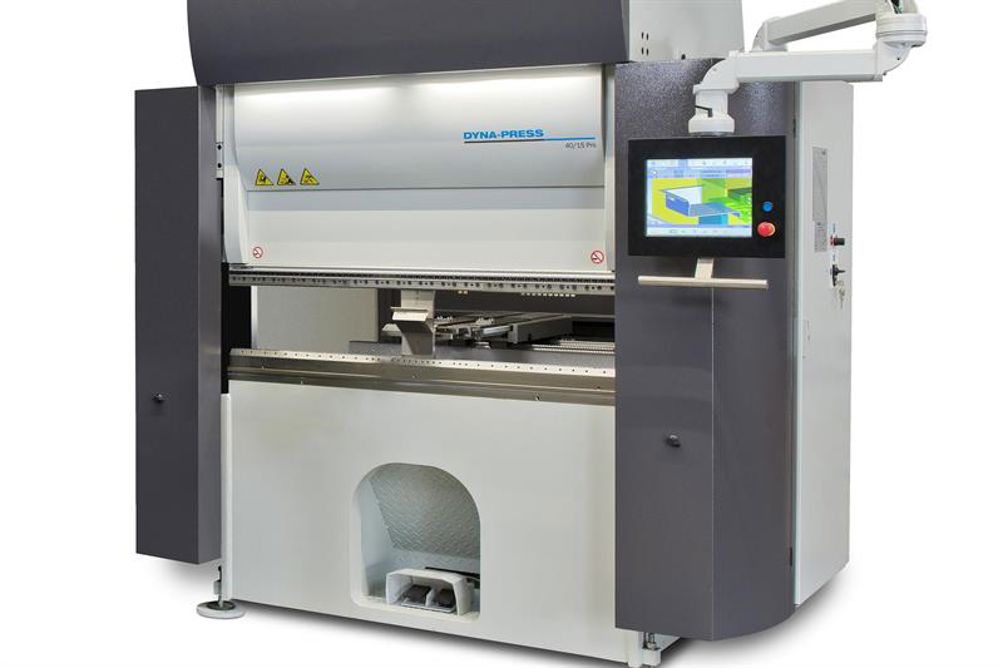

The Dyna-Press electric ram offers a smooth transition from approach to working speed and minimises power consumption through the use of an optimal power-to-inertia motor ratio. Coupling between the ram and the servomotors is made using two heavy-duty ball screws to distribute force and tonnage evenly across the working length.
Dyna-Press 40/15 Pro uses vertical-removal tooling for simple and quick tooling changeover, even of heavier tools. Like other Dyna-Press models, the 40/15 Pro can be operated in a seated or standing position. The 15” Touch-B touchscreen CNC features an intuitive graphical display and offers additional functionality by enabling the operator to create and simulate 3D designs at the control.
LVD’s Dyna-Press 40/15 Pro features a 400 mm opening height and 200 mm stroke. A number of machine options are available, including front supports, hydraulic clamping on table and ram, robot interface, and contact fingers.
