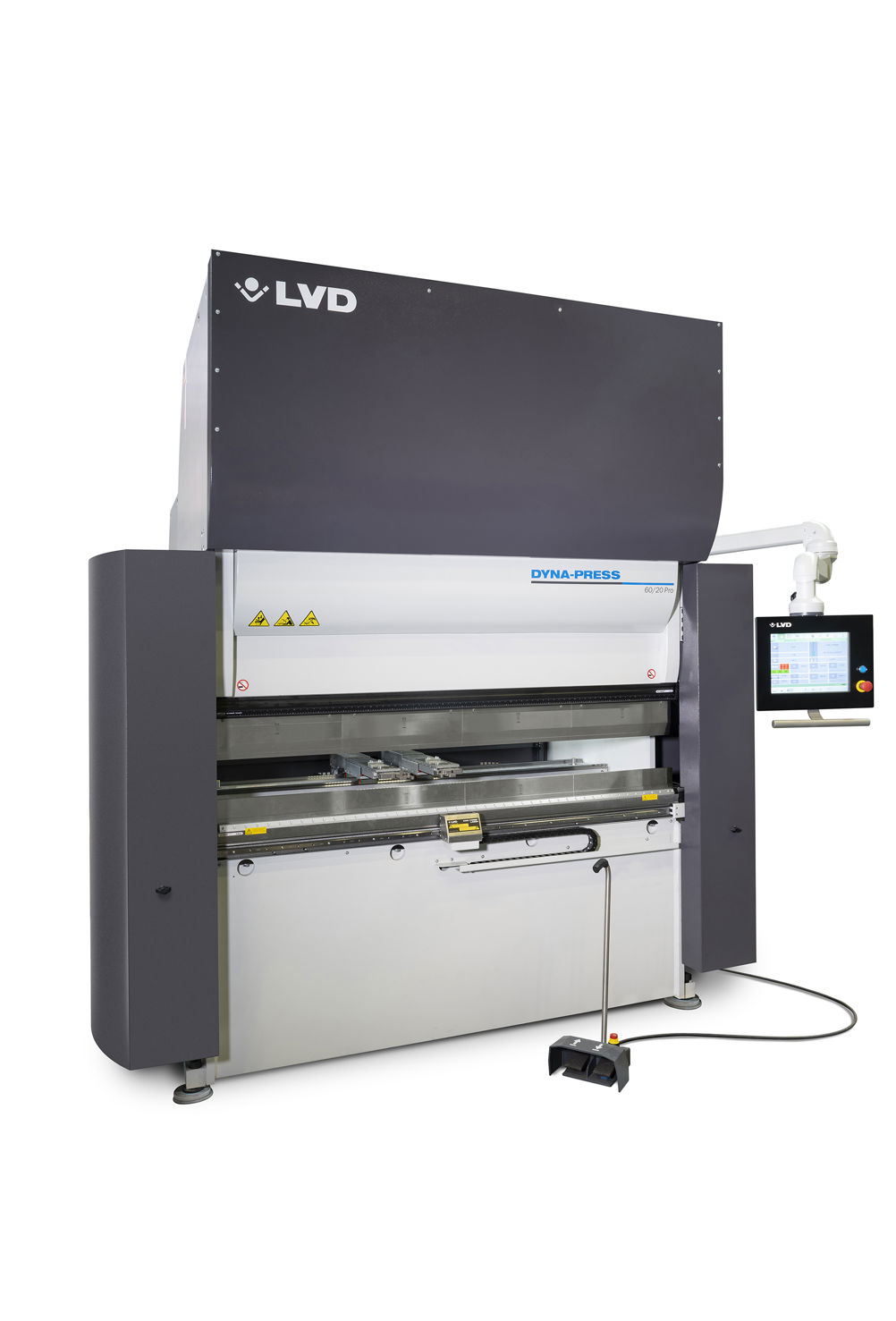

A 60/20 Pro model is equipped with LVD’s Easy-Form Laser system for greater control of the bending process to achieve high output at a high level of quality. The Pro model also offers an optional custom-made crowning system.
Dyna-Press press brakes consume low electricity and deliver fast cycle times to bend more parts per minute more efficiently at a lower cost per part. A streamlined design uses two heavy-duty ball screws to drive the force transmission from the servomotors to the pressing force of the ram.
Fewer components means less maintenance.Dyna-Press is built to ensure accuracy across a broad range of small-to-medium-sized bending jobs. The machine can be used for air bending, coining, hemming and bottoming.
Dyna-Press 60/20 offers flexibility in tooling. It can be outfitted with universal, Wila or US style-punches and universal, LVD or US style-dies. The Pro version offers pneumatic Wila clamping for the European market and hydraulic clamping for the U.S. market.
The 60/20 Pro is available with a crowning system custom-made for each machine, designed to distribute the appropriate force thus ensuring the bend angle remains consistent over the full length of the part.
Like all Dyna-Press models, the 60/20 is easy to operate with minimal training. The 15-inch Touch-B touch screen control features an intuitive graphical display. Operators can create 2D designs and simulate in 3D on the screen. The controller is compatible with LVD’s CAM software, CADMAN-B.
Dyna-Press press brakes are available in 24, 40 and 60 tons. Dyna-Press 40/15 Pro and 60/20 Pro offer enhanced technology. Dyna-Press 40/15 Pro can be combined with an industrial robot to create a compact, high-speed robotised bending cell (Dyna-Cell) for automated bending operations.
