ITC develops miniature corner rounding cutters for precision radii

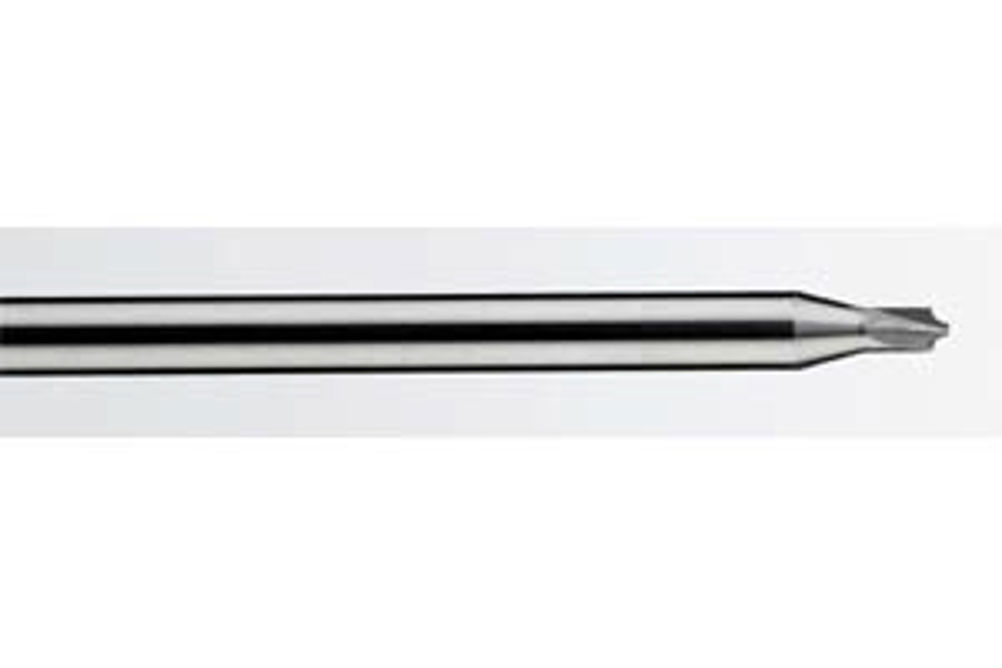

The two flute solid carbide milling cutters are manufactured from an ultra wear-resistant micrograin carbide. With a full 90° radius plus run-out, the ITC 2171 Cyber series is available as an uncoated cutter or with a Cupro coating to maximise performance and tool life on a wide variety of materials. ITC's 2171 Cyber series has been developed for micro machining applications. Shank diameters of 3 mm and overall length of 38 mm maximise rigidity and surface finish quality. The choice of corner radius includes 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.7, 0.75. 0.8, 0.9 and 1 mm. The 2171 series complements the proven 4011 series for the machining of larger radii. The 4011 series is available in diameters from 8 to 20 mm with a choice of radii including 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5 and 6 mm. ITC can manufacture special radius cutters at its UK facility to meet the specific demands of the end users.
