The addition of a complete selection of corner radii now boost tool life further, while the corner radii options for each diameter are well suited to 5-axis profile machining applications.

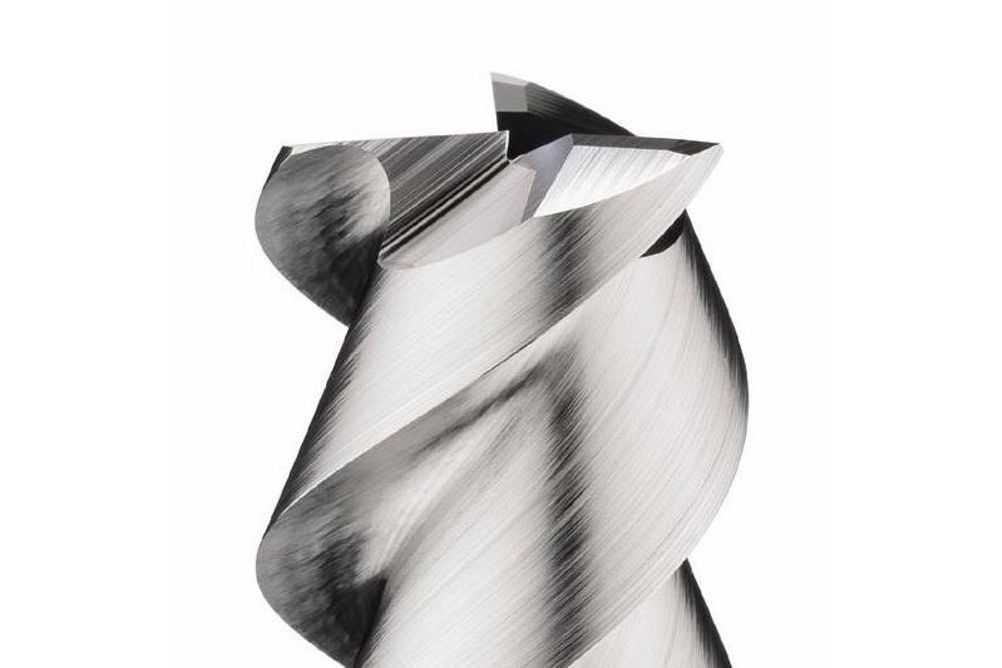

The extended 3041 Series is available in diameters of 3, 4, 5, 6, 8, 10, 12, 16 and 20 mm with an overall length from 38 to 100 mm and a cut length from 12 to 40 mm, depending upon the chosen diameter.
The smallest 3 to 5 mm diameter tools are now available with a corner radius of 0.25, 0.5, 0.75 and 1 mm.
The 8 and 10 mm diameter tools also include 1.25, 1.5 and 2 mm radii, while the 12, 16 and 20 mm diameter tools offer radius increments in the 0.25 mm steps up to 1.5 mm, with 0.5 mm increments available beyond 1.5 mm. For the 12 mm diameter tool, this now includes a 2, 2.5 and 3 mm corner radius, while the 16 and 20 mm tools offer respective corner radii up to 4 and 5 mm.
