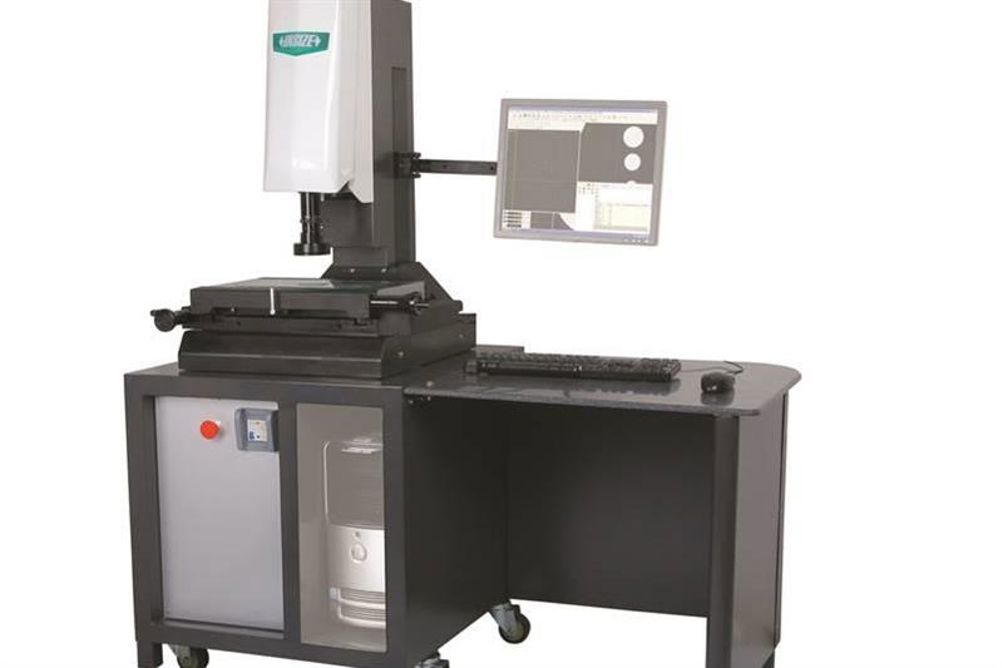

The accuracy of the X-/Y-axis is quoted as =(3+L/200) micron, while repeatability is 2 micron. Cutwel says the resolution of X, Y and Z axes is 1 micron.
A 0.3M pixel colour CCD camera is featured with 20-125x magnification and 0.7-4.5x zoom, and although the drive for the X and Y axes is manual, the Z-axis is motorised, giving automatic focus functionality.
Standard delivery includes the main unit along with operation table featuring controller, software disc, counter card, joystick, video card, calibration glass chart, clay and an anti-dust cover.
