In place of a horizontal spindle, the 50 kW, 18,000 rpm head has a swivel angle of 15-195° and offers a ramp-up time of 0.7 seconds.

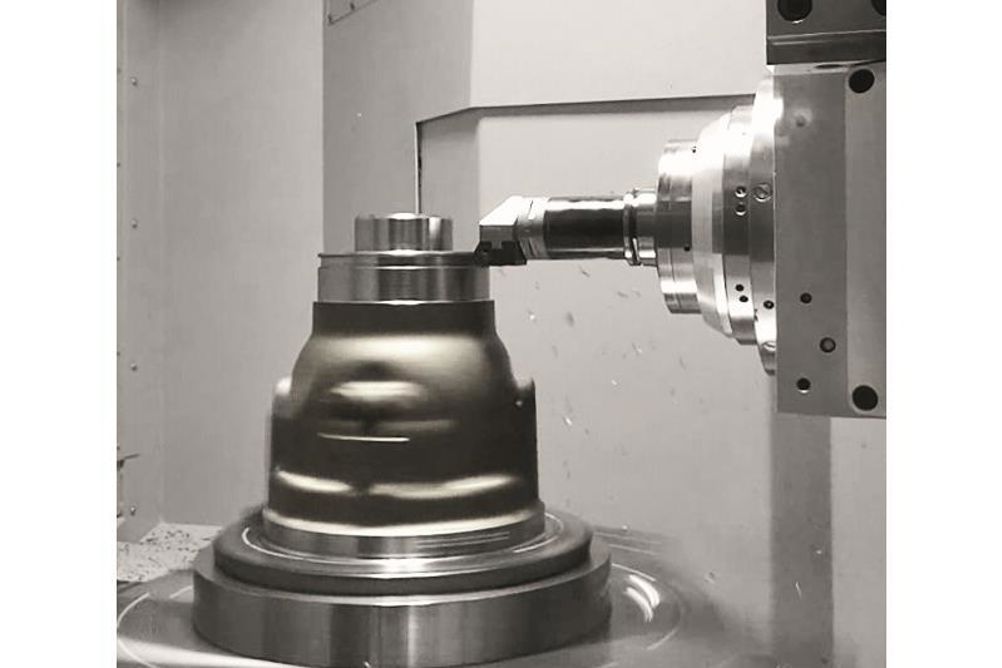

With a direct drive of 32.5 kW producing 900 rpm and a resolution of 0.001°, the NC rotary table provides multi-face, one-hit machining including interior, exterior and 'straight' turning tasks.
The HEC630D U5 MT offers X-, Y- and Z-axis travels of 850, 700 and 850 mm, respectively, and corresponding rapid axis traverse rates and feed rates of up to 100 m/min. Chip-to-chip time is 2.7 seconds, while a pallet change takes 9.5 seconds.
