Starrag tackles titanium with Scharmann Ecoforce Ti HMC

Product Launches

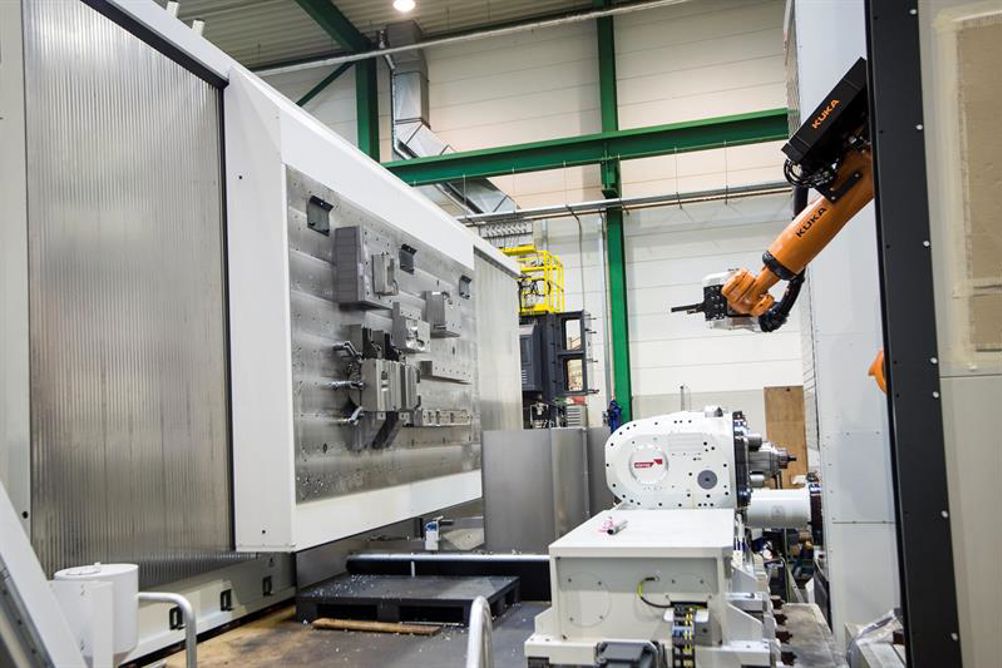

Starrag has expanded its range of machines for titanium machining with the introduction of Scharmann Ecoforce Ti horizontal machining centres covering X-, Y- and Z-axis capacities up to 6,300 by 3,000 by 3,000 mm, and featuring a 3-axis roughing head and/or a 5-axis fork-type head for finish machining.

Workpieces weighing up to 8,000 and 10,000 kg can be accommodated on 2040/2540 models; and 12,000 and 15,000 kg on the 2060/2560 series. In all cases, the machines boast X-, Y- and Z-axis rapid traverse rates of 20 m/min, as well as HSK B160 toolholders.

The 50 kW fork-type milling head, which develops 10 to 3,000 rpm and a torque of 2,400 Nm, is complemented by a 75 kW spindle extension rated at 3,000 rpm and 5,500 Nm.
