Mills CNC, the exclusive distributor of Doosan machine tools in the UK and Ireland, is showcasing four CNC milling machines (including two brand new models), from its extensive ranges of vertical CNC milling machines and horizontal (3- and 5-axis) CNC milling machines, at MACH 2010.
Exhibiting 13 Doosan machines in total, on stand 5430, the four CNC milling machines being exhibited by Mills are:
The VC 630/5AX 5-axis machining centre which can handle workpiece sizes of 730 mm diameter x 500 mm, with maximum workpiece weights of 500 kg, on its 630 mm diameter table. The CNC machining centre has a powerful, high-torque 12,000 rpm, 32 kW spindle, axis travels of 650 mm, 765 mm, 520 mm in X, Y and Z, and traverse rates of 40 m/min, 40 m/min and 36 m/min, respectively.
The DNM 650 vertical machining centre which is the largest in the DNM range has a 32 kW, 12,000 rpm spindle generating 203 Nm torque, with a 1,300 mm by 670 mm work table.
The DNM 400 machining centre with X, Y and Z-axis travels of 762 mm, 435 mm, 510 mm respectively, plus a 15 kW, 12,000 rpm spindle and 30-position ATC.

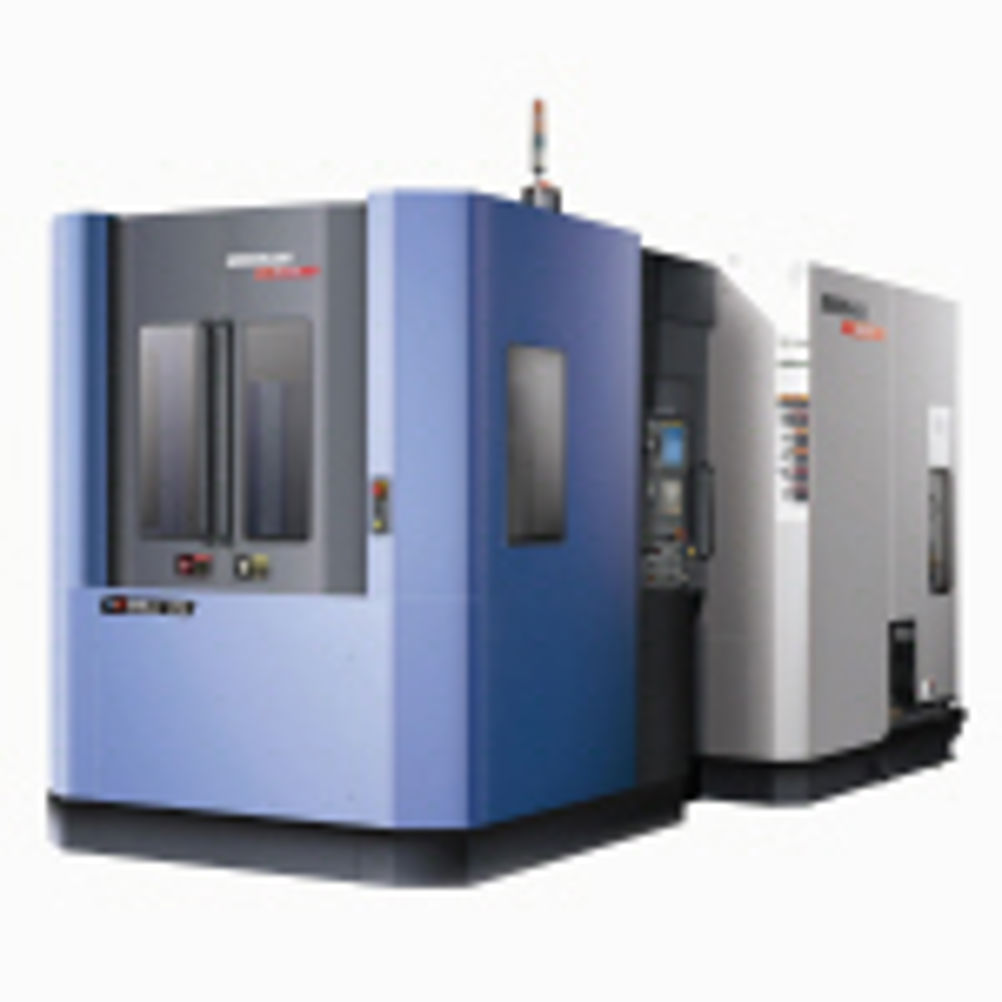

The HP 5100 horizontal machining centre with a pallet size of 500 mm and X, Y and Z traverses of 850 mm, 700 mm, 750 mm respectively, has a powerful 22 kW, 14,000 rpm, 40 taper spindle (BIG Plus standard). Non-cutting time is minimised with 60m/min rapid traverses and one second tool change time.
[Products covered: CNC milling machines, CNC machining centres]
