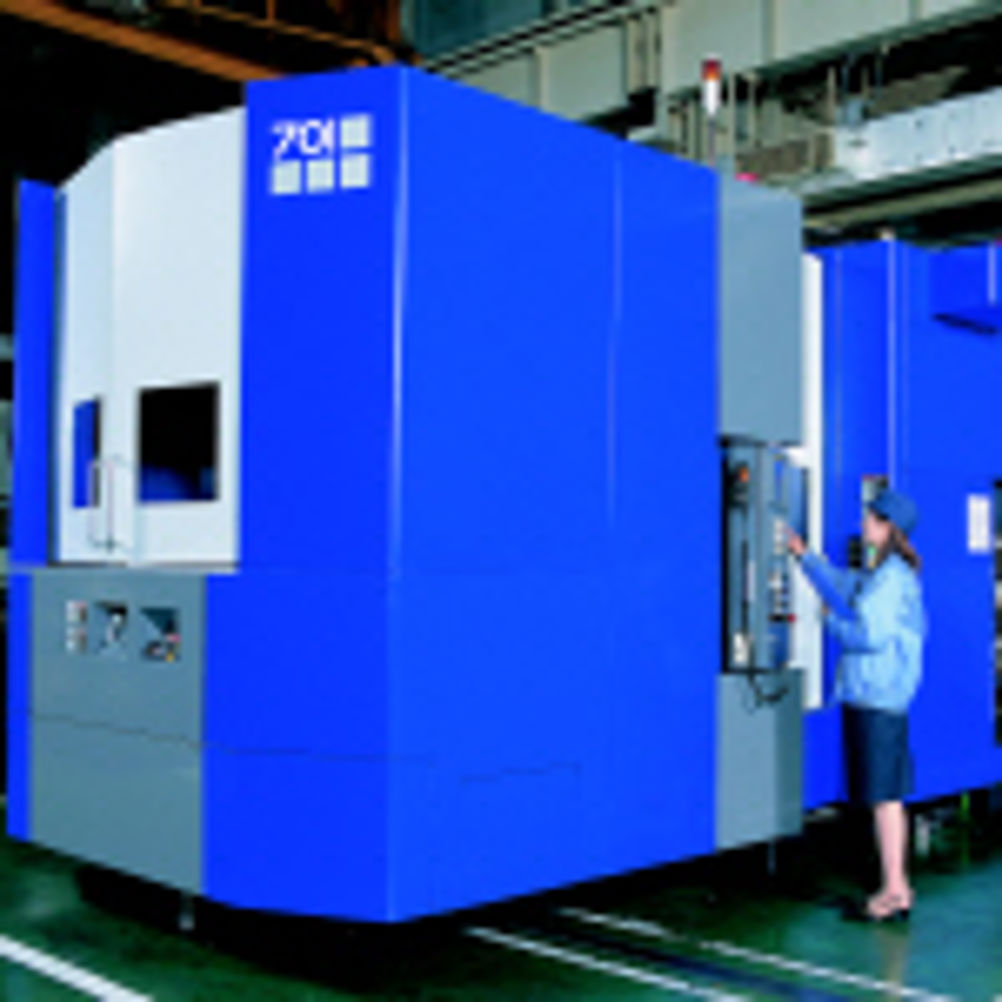

Niigata high speed horizontal machining centre

The Niigata horizontal machining centre SPN-701 has X, Y and Z travels of 1,000, 950 and 850, respectively, with a maximum feedrate of 60 m/min. Pallet size 630 mm by 630 mm with maximum load 1,200 kg. The spindle is BT50 and is driven by a AC 30/25 kW motor at 12,000 rpm. ATC capacity is 60, with maximum tool length 550 mm and weight 20 kg. Fanuc 16i CNC is fitted.
