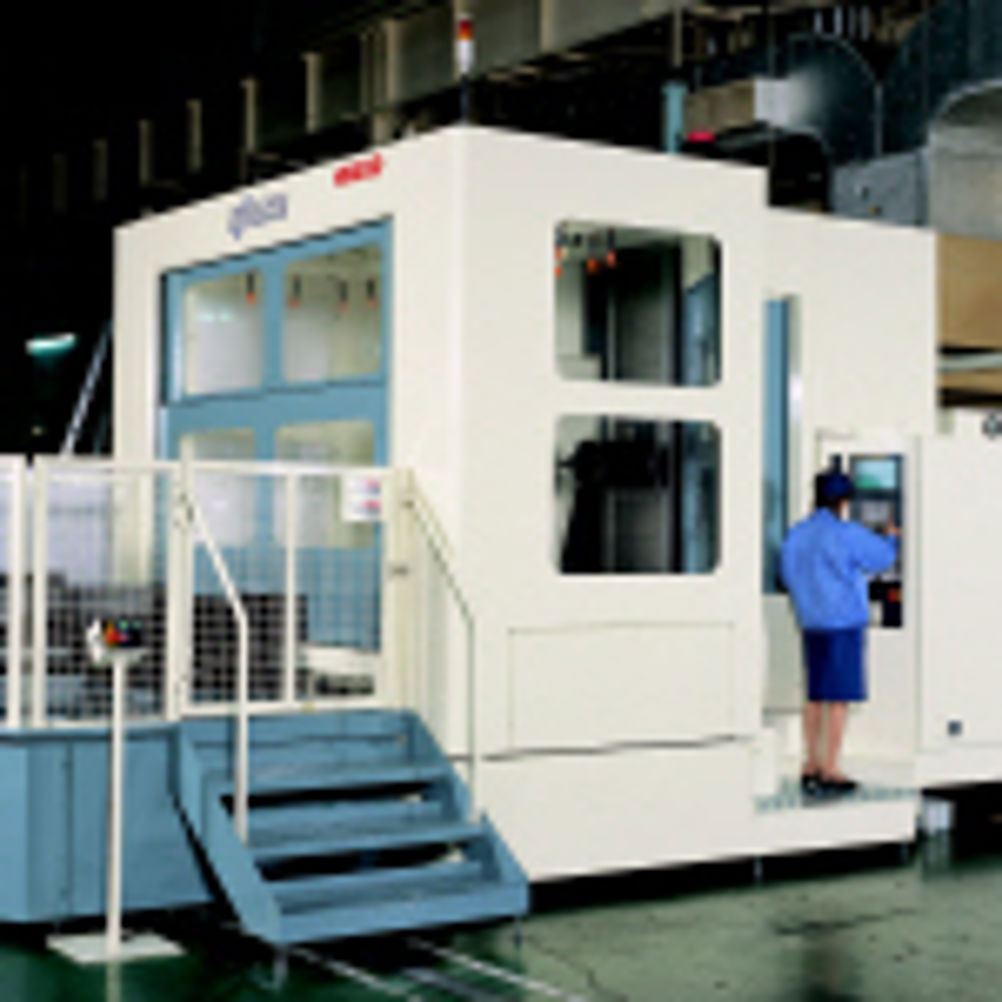

The Niigata HN80D has X, Y and Z travels of 1,530, 1,230 and 1,020 mm, respectively, and a maximum feedrate of 30 m/min. Pallet size is 800 by 800 mm and capacity is 2,500 kg. The BT50 taper spindle is driven at 6,000 rpm by an AC 37/30 kW motor. ATC capacity is 90 with maximum tool length 610 mm and maximum weight 30 kg. Fanuc 18i CNC is fitted.
