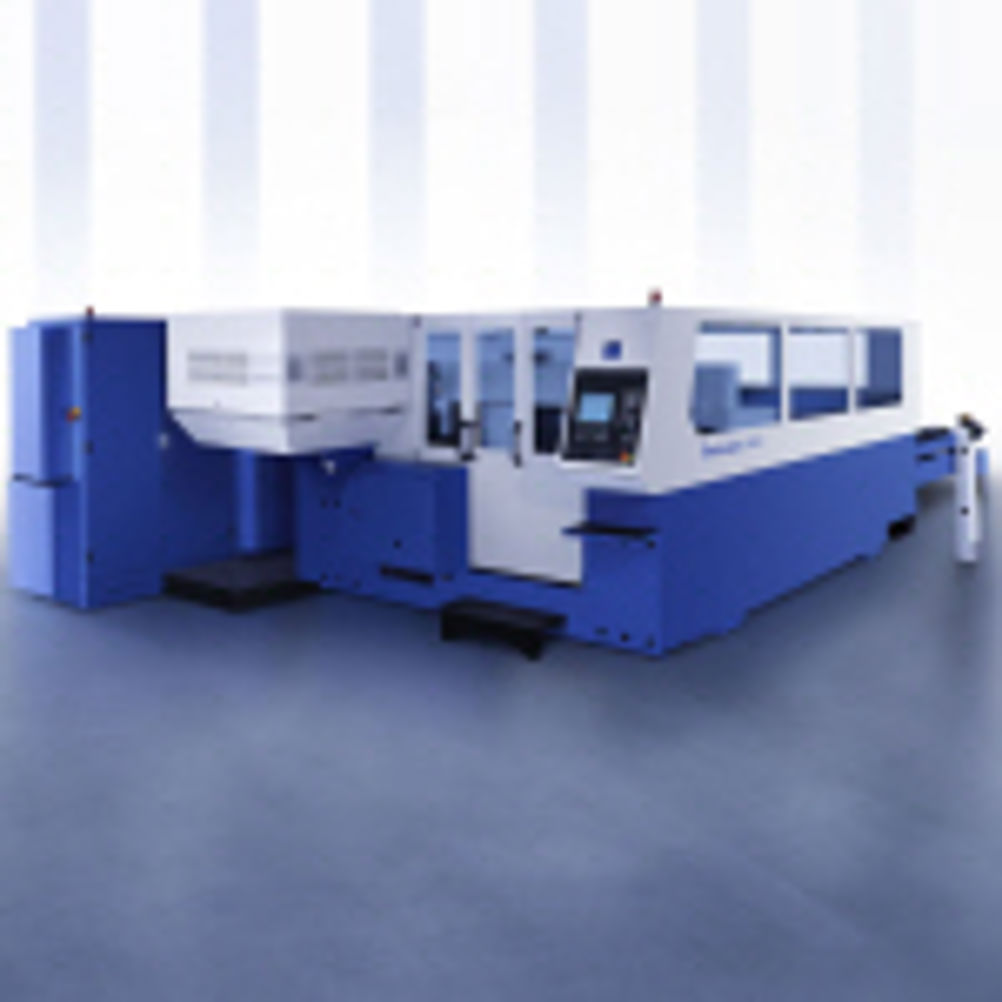

TruLaser 3030 Lean edition laser cutting system

Aimed at manufacturers needing additional and expandable capacity, the laser cutting system's capacity can be quickly and effectively boosted in line with customer demand via a choice of options and retrofit possibilities. The laser cutting system is equipped with a TruFlow 3200 laser for cutting sheet, up to 20 mm thick, and has simultaneous axis speeds of 140 m/min. The single head, with collision protection, processes an entire range of material thicknesses. The compact, ergonomic design of the TruLaser 3030 Lean Edition means the laser cutting machine can be fed with sheets from the side or rear of the machine. AdjustLine, for the instant increase of material tolerance, and LensLine, the lens monitoring system, are both included in the standard package. The automation options start with an automatic pallet changer and include a range of possibilities, from a simple LoadMaster loader through to a complete LiftMaster storage and automation system. For process optimisation a premium cutting package is available as both an option and a retrofit. The components are PierceLine, FastLine and a spray unit that prevents material spatter from sticking.
