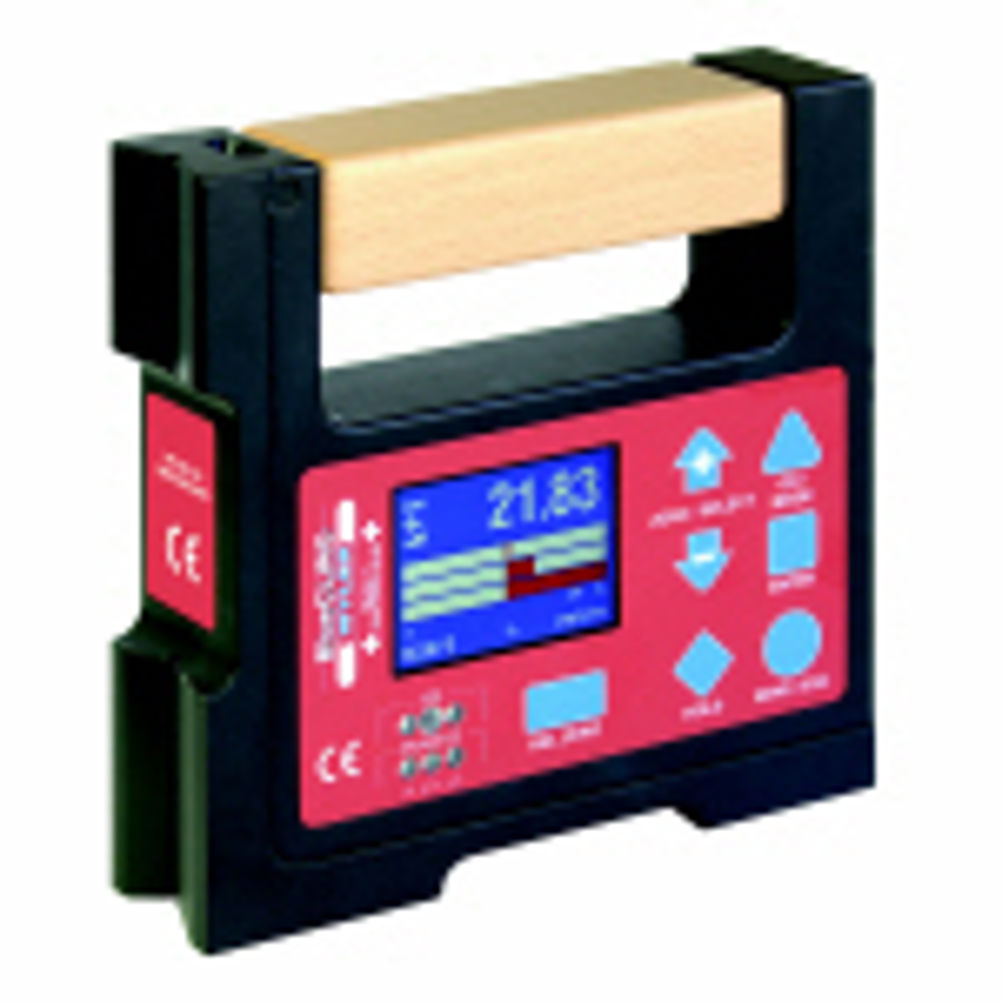

Wyler Blue Clino electronic inclinometer from Bowers
The Wyler Blue Clino is an advanced electronic inclinometer boasting a measuring range of +/-60°, compared to its Wyler Clino 2000 predecessor's +/-45° scope, making it ideal for applications where high angular accuracy is required over an extended measuring range.
With the accuracy and ruggedness required for taking precise angular readings in harsh, but technically demanding environments, the inclinometer has horizontal and vertical prismatic bases - enabling it to be used in both orientations. The instrument's optional 3rd measuring base, allows the measurement of the parallelism of two machined or constructed elements.
Resolving to 5 seconds of arc (0.025 mm/m), the instrument has a large digital display, quick calibration and zero functions - all with an intuitive operating system.
An optional wireless data transmission system makes it possible to collect data with ease. For example: Clino Blue wireless has been used to transmit measured data relating to the position of flaps on an aircraft's wings.
Bowers Metrology are the UK agents for Wyler.
