Walter introduces new milling and drilling insert grade

​Walter says it has set a new standard in cutting tool performance with the new Tigertec​ Gold PVD grade WSP45G. The introduction of this new cutting tool material it adds pushes the boundaries of coating technology in terms of the application, performance and the materials that customers can apply them to.

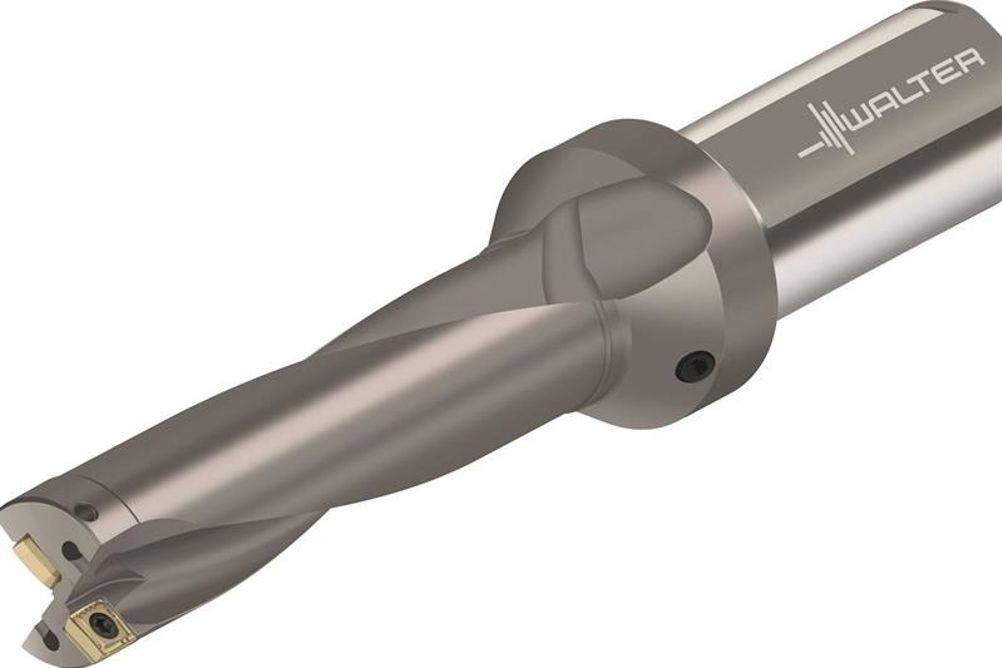

In addition to their compatibility with Xtratec XT, Walter BLAXX and M4000 milling cutters systems, the new Tigertec Gold PVD indexable inserts can also be used in Walter indexable insert drills such as the D4120. This now makes these tools not only suitable for ISO P steels but also difficult-to-cut materials from the ISO S and M material groups.

The multilayer coating system is the only one of its kind in the world. The new TiAlN-Al2O3 multilayer coating makes the WSP45G hard with additional toughness and therefore tremendously resistant to abrasive wear and high temperatures. A special mechanical post-treatment process improves resistance to thermal cracks and fracture and protects the cutting edge from micro-spalling.

The light gold-coloured ZrN top-coat of the multilayer system makes it easier to detect wear and therefore, improves process reliability. Unused cutting edges are reliably identified and this makes it possible to exhaust the full potential of the indexable insert.

Potential fields of application for the new Tigertecâ Gold PVD grade include demanding machining tasks such as the cutting of heat resistant alloys and materials with difficult cutting properties. The new Tigertecâ Gold PVD grade also excels in challenging conditions such as interrupted cutting. In the case of milling, the new Tigertecâ Gold PVD grade is also suitable for challenging applications such as long overhang machining or the machining of parts with delicate clamping arrangements.

Whilst indexable drilling, inclined entry and exit machining operations will benefit from the new grade. Depending on the material and application, the new Tigertecâ Gold PVD grade achieves performance improvements of up to 75% in ISO P materials and average gains of 47% in ISO P, M and S materials.

So, whether it is the machining of turbochargers in cast steel, fasteners and chassis parts in titanium or components in nickel-based alloys as encountered in the automotive, energy and aerospace industries, the WSP45G grade is the ideal process improvement solution. For further details on how Walter can reduce your tool inventory whilst improving your machining performance, contact Walter for further information.
