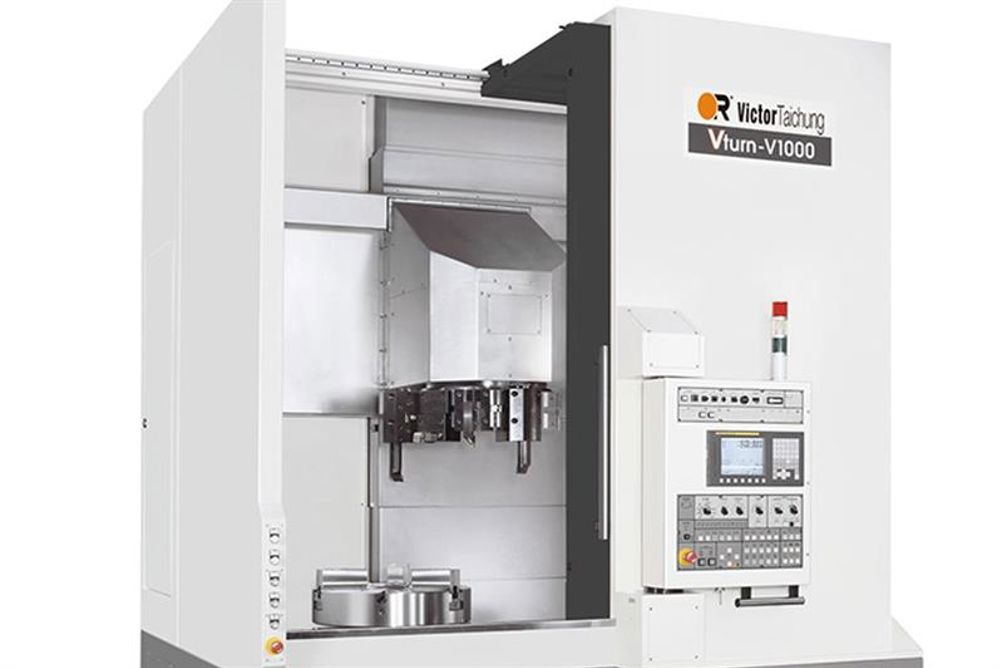

The Vturn-V1000 offers a swing of 1,100 mm, a maximum turning diameter of 1,000 mm and an overall turning length of 850 mm. From a traverse perspective, the VTurn-V1000 provides X- and Z-axis strokes of 500+40 mm and 850 mm respectively. The standard chuck has a diameter of 24", with options of 28", 32" or 40". Maximum load capacity is 1,250 kg.
To accommodate such heavy payloads and large diameter tools, the V1000 has a 45 kW spindle motor with a two-stage ZF gearbox as standard.
A 12-station turret accepts maximum tool shank diameters of 32 mm, with boring bars up to 60 mm (80 mm optional) possible. An optional 12-station turret with live tooling is also available.
