Toolroom mill gets a production features

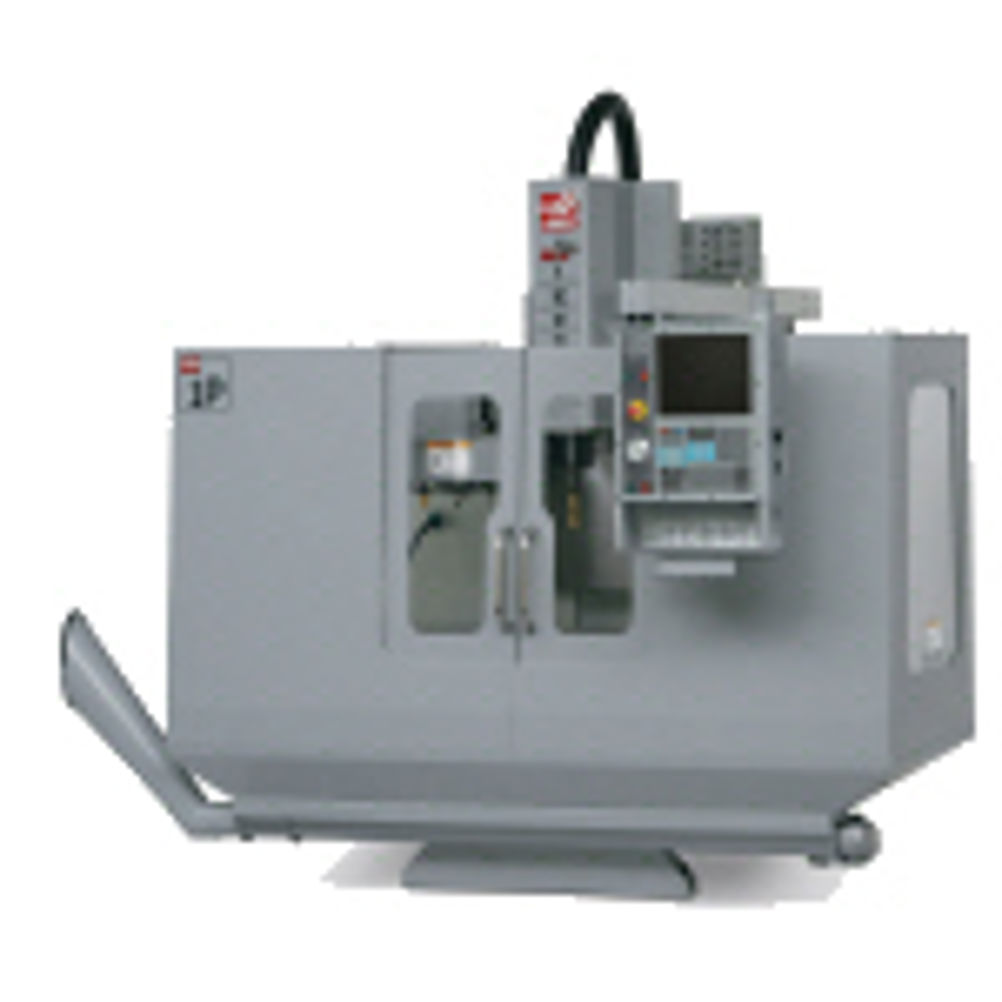

The TM-1P Toolroom Mill from Haas Automation is based on the shop-proven Haas TM-1, but has many standard features that make it well suited for the production environment. It comes “out of the box” with faster speeds, an automatic tool changer and a full enclosure. The TM-1P’s reliable 5.6 kW (7.5-hp) vector drive spindle spins to 6,000 rpm and uses standard 40-taper tools. Rapids and cutting feedrates are 10.2 m/min, double that of the non-enclosed TM-1. The machine’s 762 by 305 by 406 mm travels and a 1,213 by 267 mm T-slot table provide plenty of room for workholding and larger parts, and a 10-pocket tool changer is standard. The TM-1P operates on either single- or three-phase power, and a one-piece cast-iron base/column damps vibration and provides rigidity – ensuring a high level of precision and repeatability. One of the most-appreciated features of the TM-1P is the Haas control, which features the Haas Intuitive Programming System. A number of options are available for the TM-1P, including an auger-style chip conveyor, high-flow coolant system, 4th and 5th axis drives, rigid tapping and much more.
