Smartbore system makes micron adjustment easy

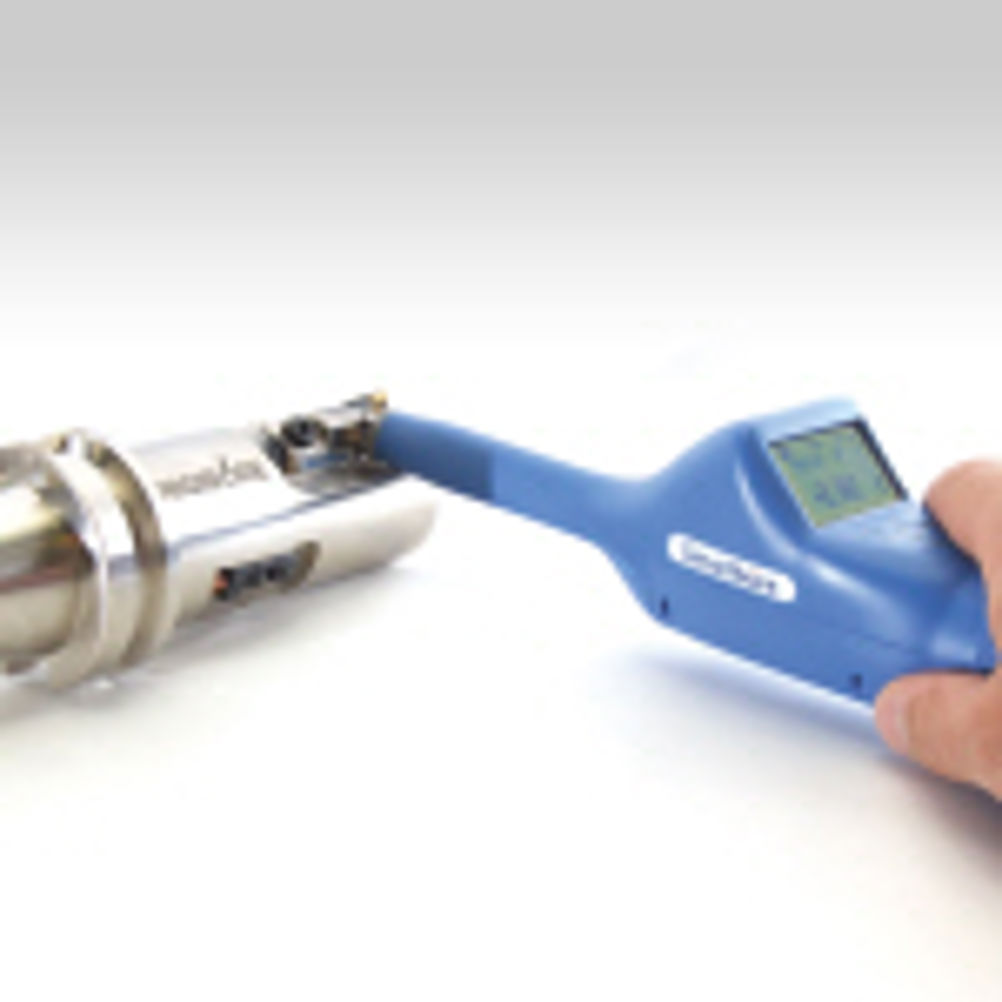

The Smartbore boring bar/adjustment tool combination minimises interruptions to machining operations, provides easy read-off checks via the hand-held adjuster or a separate mobile reader and offers fine adjustment to within 1 micron.
For complete flexibility, the digital adjustment can be displayed away from the adjuster tool on our remote display. The same readout could also be displayed on a nearby computer monitor, or even on a large LCD screen mounted high in the manufacturing hall.
Smartbore is an exceptionally flexible system: as well as being incorporated into new tools it can also readily be retrofitted to existing tools with UFP cartridges. Suitable for a wide range of boring applications, it can be incorporated into tools to fit any machine spindle with multiple Smartbore cutting edges per tool for multiple bore machining.
Specifications:
* Minimum bore: 28 mm on diameter if cartridge-based. 16 mm if built-in to the bar
* Adjustment resolution: 1 µm/.00004 ” on diameter
* Relative accuracy = 95 % over adjustment range
* Adjustment range: 0.6 mm/.024 ” on diameter
* Multiple cutting edges per tool
* Designed to suit any application and will fit any machine spindle
* The Smartbore Adjuster tool can be used with any number of tools
* Unprecedented ease of use – manual adjustment with easily legible digital readout, even when tools are difficult to access
* Metric or imperial measurements display
* Built-in rechargeable power pack for the Adjuster tool
And
* There are no restrictions on the design of Smartbore boring bars
* The machine spindle requires no modification
* Smartbore bars can be carried in a standard magazine and tool management system
* Smartbore cartridges are easily replaceable
