Sirius laser profiler is automation-ready

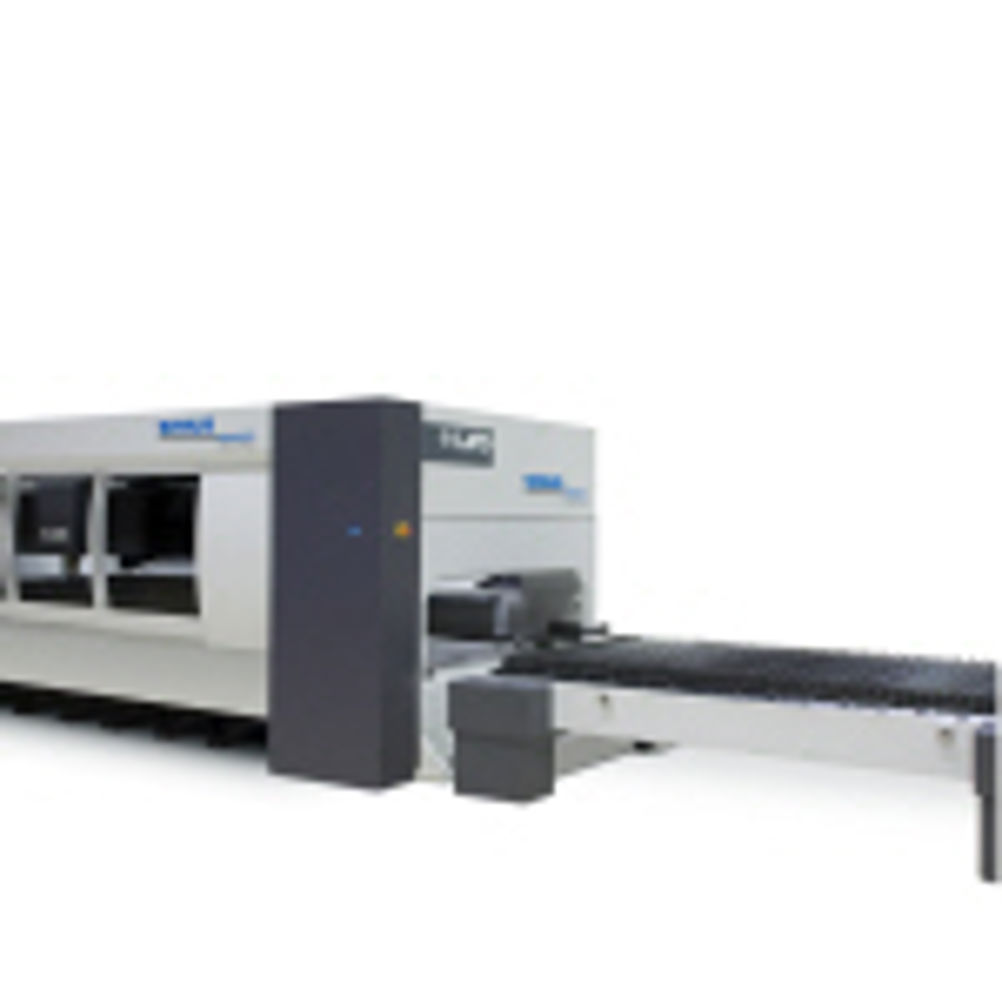

LVD's Sirius is, an automation-ready flying optics laser cutting system.

It has been designed to provide efficient processing of parts at optimal speeds and accelerations to suit the part geometry, offering reliable cutting performance at an affordable price-performance ratio. Sirius is offered in a standard and a Plus model. The Sirius Plus is optimised with additional features and automation capabilities. The machines are available with 2.5 kW or 4 kW CO2 GE Fanuc lasers sources. The combination of a dynamic machine with an excellent laser beam quality allows high-speed laser cutting, with quick positioning achieved at axis speeds up to 120 m/min. Sirius is designed with a modular construction, allowing the user to select the configuration that works best for the application and budget. As a standard unit, the laser cutting system features 3 m by 1.5 m integrated shuttle tables, which maximise uptime by allowing one table to be loaded while the machine is cutting on the other table. Table change time is 25 seconds. Sirius Plus is engineered as automation-ready and can be expanded with the addition of various components to form an automated load/unload system. An optional compact tower system creates a productive, flexible manufacturing cell that can be operated 'lights out'. The tower system, working in concert with the material handling unit, provides full capabilities for loading and unloading, and includes a shelving unit for storing raw material and finished parts. Sirius is equipped with a laser cutting head that accommodates a 5-inch or 7.5-inch quick-change lens for fast changeover and minimal set-up. These water-cooled quick-change lenses can be exchanged very easily, using a self-centering system. Lens calibration is programmable and quick to achieve. The feature enhanced Sirius Plus model offers NC Focus for programmable adjustment of the focal position without operator intervention. This model also has Process Control for piercing and cutting and an automatic shut-down feature. Sirius is equipped with a high-pressure cutting head that produces exceptionally clean cuts, while a crash-protection system protects the head from damage after collision with the workpiece. A total power control feature automatically adjusts the laser power in relation to the cutting speed, ensuring an optimal cut at every contour width and minimising the heat-affected zone. The machine's edge function feature processes sharp corners cleanly, particularly in thicker materials. Optional CADMAN-L 3D offline programming software provides a comprehensive laser-cutting CAM package.
