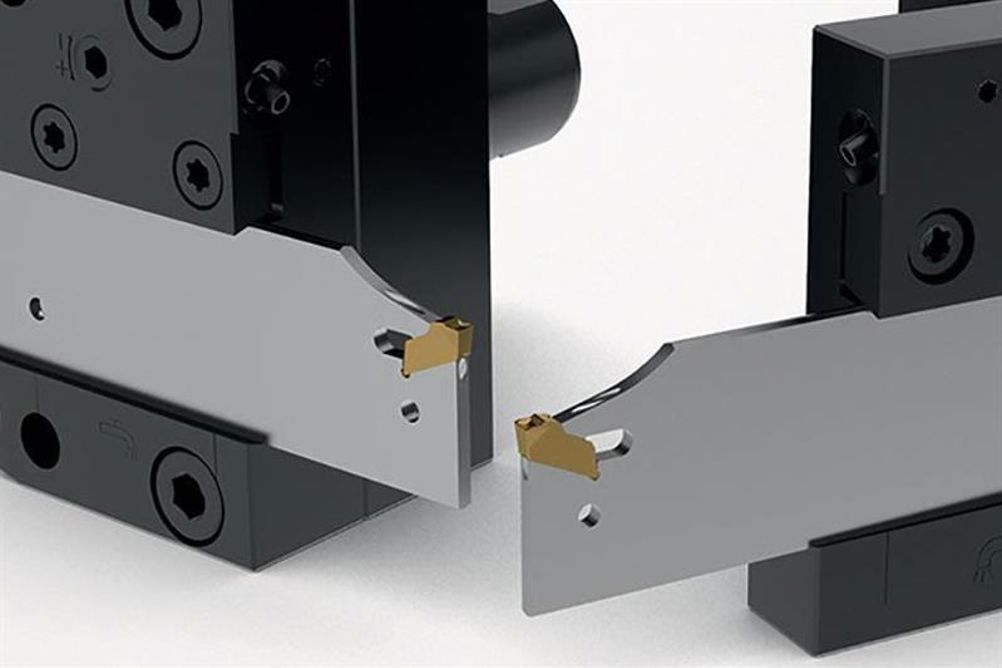

Adapters directly hold 150.10-JETI parting-off blades in the VDI turret and ensure the delivery of high pressure coolant to the cutting zone, without the use of hoses.
The new 150.10-JETI range includes face-mount adapters for VDI30, VDI40 and VDI50 turrets and star-mount adapters for VDI25, VDI30 and VDI40 turrets. The adapters hold 20 mm and 25 mm HSS parting-off blades, and the range is also compatible with MDT reinforced blades.
Coolant is delivered internally to the adapter via the turret and is then directed to the cutting zone through coolant holes located in the blades. This fast and direct transfer of coolant to the cutting edge, achieved by employing Seco’s advanced and proven Jetstream Tooling technology, results in fast heat removal, improved chip evacuation and superior surface finishes.
Says Mike Fleming, sales and marketing manager at Seco Tools UK: “Working in conjunction, 150.10 JETI blades and adapters quickly and effectively remove heat build-up during parting-off operations, resulting in high levels of productivity, as well as long and predictable tool life.”
Note: Video shows Seco 150.10 JETI parting-off blades in general, not the new VDI style
