Renishaw surface finish probe expands Revo measurement options

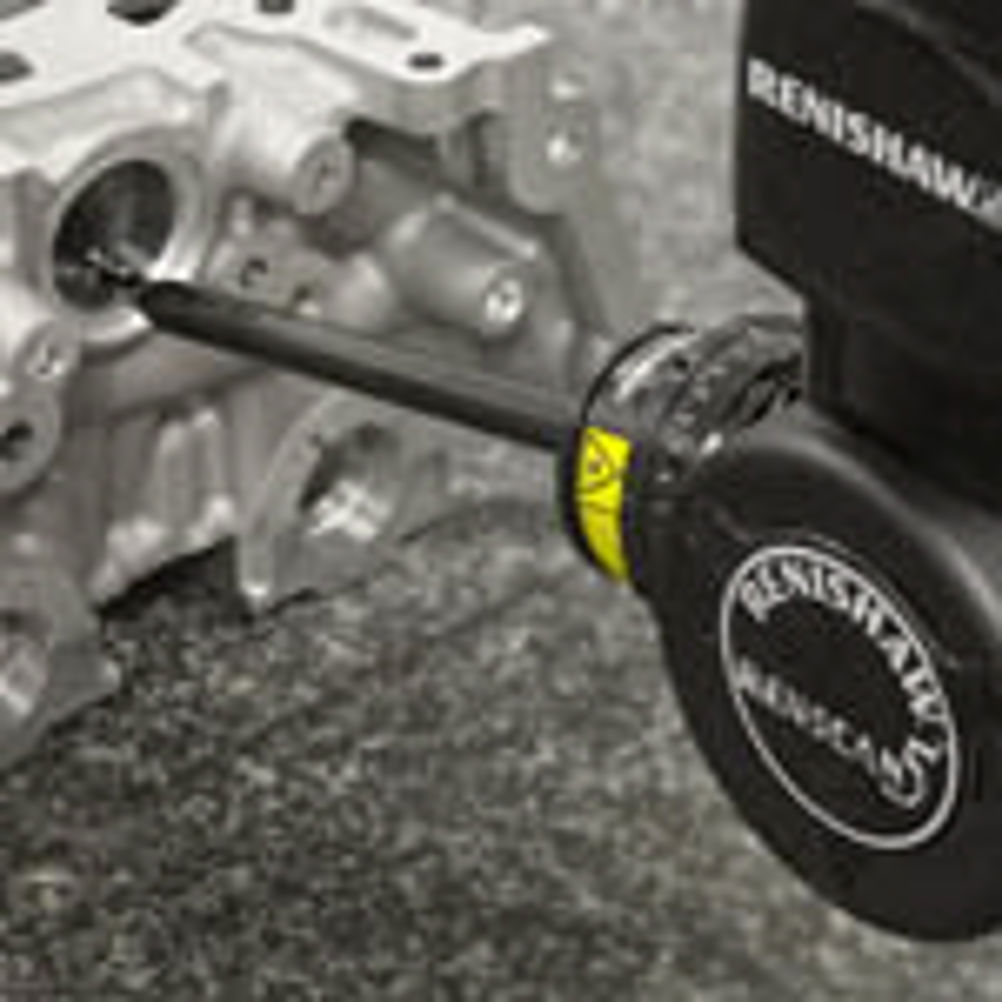

With a measurement capability of 6.3 to 0.05 Ra, the SFP1 eliminates the need for hand-held sensors, or to move parts to costly dedicated surface finish measuring machines, reducing labour costs and inspection lead times. CMM users will now be able to automatically switch between part scanning and surface finish measurement, with analysis all contained in a single measurement report. Renishaw's SFP1 probe incorporates a C-axis, which, combined with the infinite positioning capability of the Revo measuring head and a choice of styli, allows the probe tip to be automatically orientated to any angle to suit the part. The surface finish probe is supplied with two dedicated styli, the SFS-1 straight stylus and SFS-2 cranked stylus, which are selected under full measurement program control using the Revo system's modular rack system (MRS). This enables flexible access to component features combined with the consistency of fully automated CNC. A skidded probe type with a 2 micron (0.000079 in) tip radius diamond stylus, the SFP1 surface finish probe outputs Ra, RMS and raw data formats to the metrology application client software via Renishaw's UCCServer software using the I++ DME protocol. The raw data can subsequently be presented to specialist surface analysis software packages for further detailed reporting. Calibration of the sensor is also automated and carried out within a CMM software program. A new surface finish calibration artefact (SFA) is mounted on the MRS and is measured using the SFP1 probe. Software then adjusts parameters within the probe in accordance with the artefact's calibrated value.
