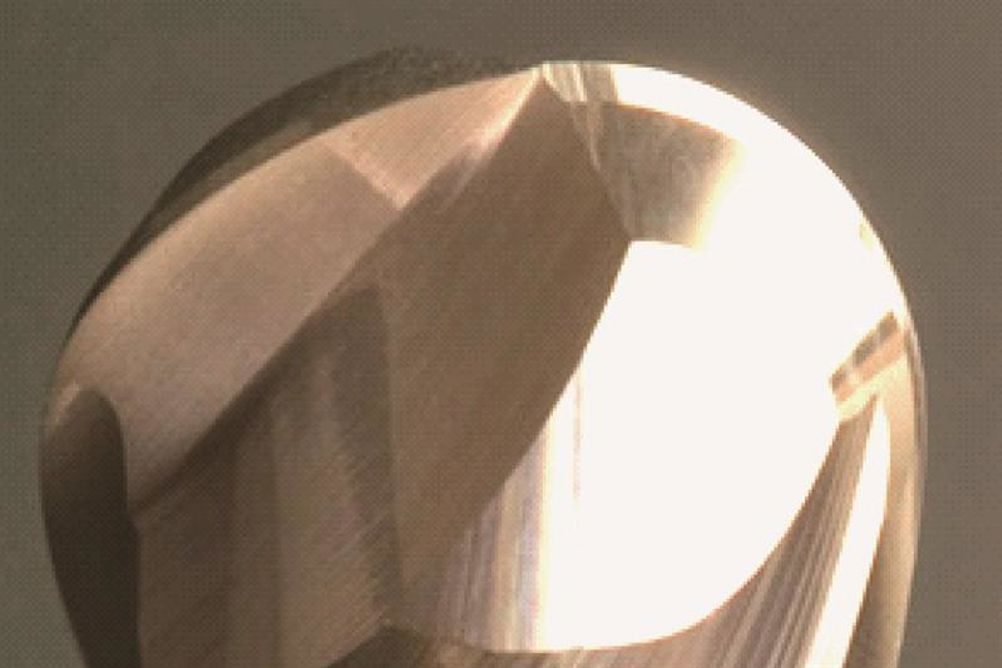

Rainford extends Union HSB and HSLB ballnose cutters

Product Launches

Capable of machining hardened steels up to 70 HRc, Rainford Precision has extended the range of HSB and HSLB ballnose cutters from Union Tool. The HSB series is a stub length tool with a short cutting length to improve rigidity and performance, while the HSLB is a long series tool for machining difficult to access surfaces and cavities with its 5xD reach.

The latest HSB is available with a cut length from 0.06 mm on its 0.03 mm radius tool, through to 22 mm on its 6 mm radius cutter, with a selection of cutting lengths offered on each radii. The series is available in diameters from 0.6 to 12 mm with the majority of tool radii targeted at diameters up to 2 mm.

For longer reach applications, the HSLB series has been extended to offer diameters from 0.1 to 6 mm with ballnose radii from 0.05 to 3 mm.
