Metallurgical microscope is easy to use

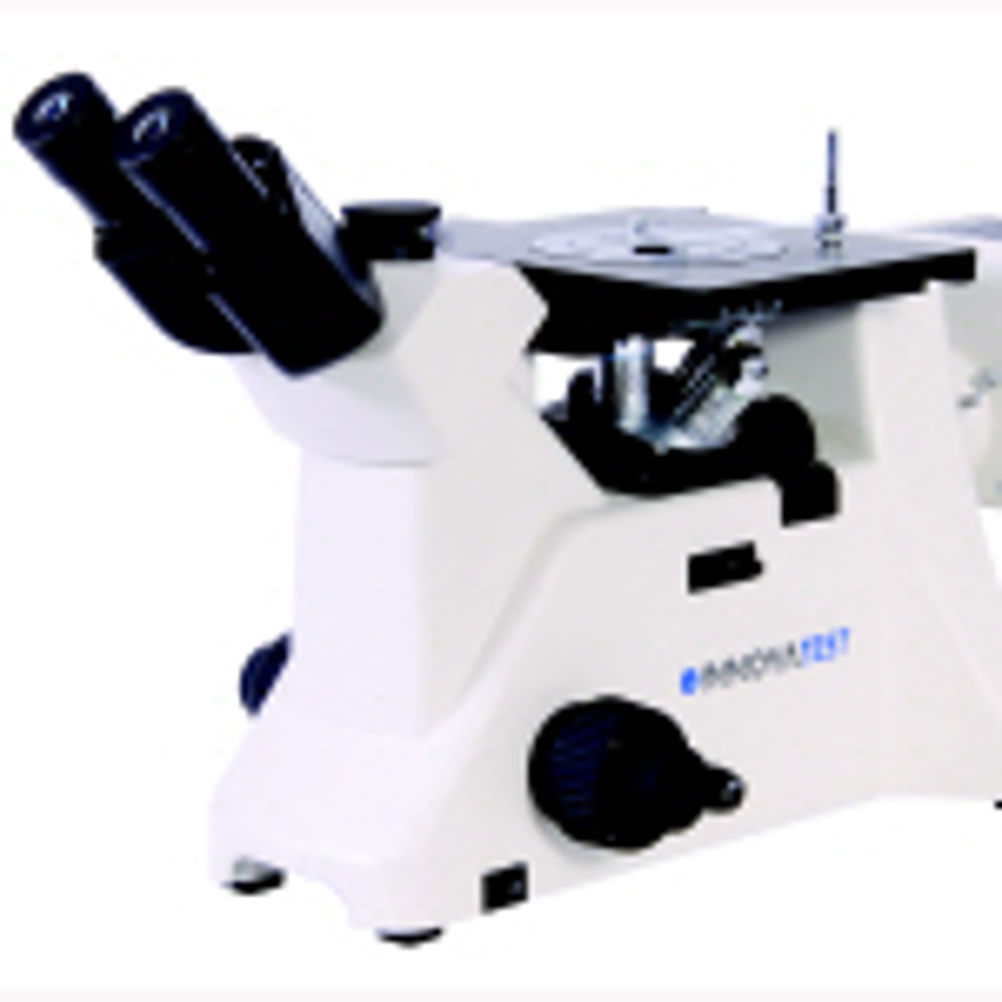

The CV MM-600 microscope is equipped with an easy-to-access, inverted mechanical stage. Based on high-precision slideways, the instrument's stage is capable of accommodating large workpieces, while ergonomics ensure that the operator is able to achieve rapid yet precise control over stage movement, using one hand only. Ideal for use in metallographic, mineralogy, precision engineering, and electronics laboratories, as the CV MM-600's trinocular system can easily be switched from manual observation to the unit's video channel, the instrument is also suitable for many other applications, including scientific research, teaching, demonstrations within education establishments, or even for use on the shop floor. The CV MM-600's vertical illumination and trinocular polariser device provides clear, crisp and high-contrast images with or without colour filters. Other features include: plan achromatic objectives with long working distance and wide-field eyepieces, optional quick or slow displacements of the mechanical stage and a coarse/fine coaxial focus system. A wide range of optional MM-600 accessories are available, including a high quality video camera system, with Windows PC based software for image analysis, a photographic unit 10X Viewing eyepiece, a 2.5X/4X Change over photograph attachment and a choice of digital camera C-mount adapters.
