Mastercam X5 introduces significant new capabilities, including: new dynamic milling techniques; multi-axis machining; smart hybrid finishing, and much more.
Dynamic milling constantly adjusts the toolpath to ensure the most efficient cut possible and allows use of the entire tool flute length, often eliminating the need for multiple depth cuts.
New dynamic milling techniques include Dynamic Rest Mill and Dynamic Contour. Dynamic Rest Mill behaves in a manner similar to the current toolpath, only it uses dynamic milling motion instead of core mill or area mill motion for the rest operations. Dynamic Contour uses an intelligent, efficient high speed contouring strategy to remove material along walls. It supports multi-passes and can optionally include finishing passes.
Mastercam's multi-axis suite has new machining techniques and a new, easy, workflow-oriented interface. Mastercam lets you choose the basic type of work you're doing, using clear illustrations, and then gives you a clear, step-by-step process for defining how you'll cut the part. Mastercam's multi-axis machining also includes a new highly specialised interface for smooth, gouge-free engine head porting.

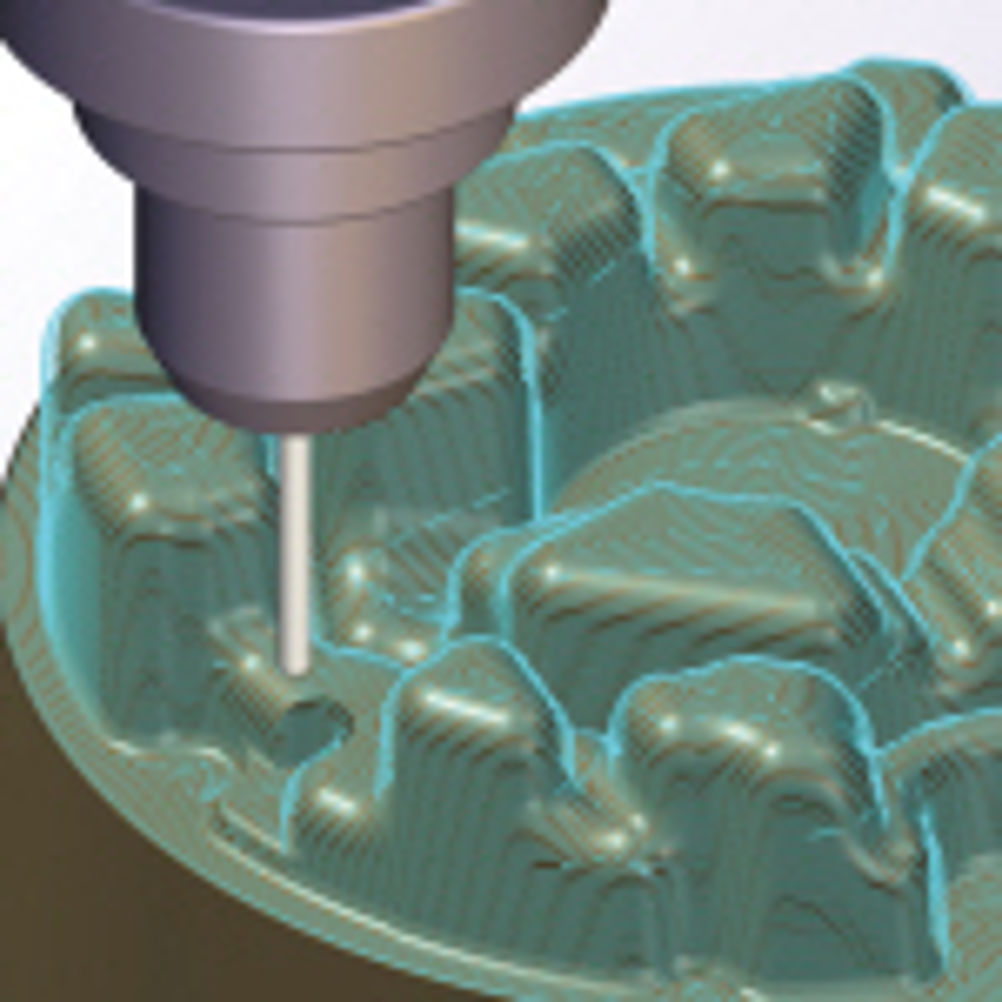

Mastercam's new 3D surface high speed OptiRough toolpath is a new technique designed to remove large amounts of material quickly, using its successful dynamic milling motion. Large, aggressive cuts are followed by fast, smaller up-cuts, safely delivering a fully roughed part faster than ever.
Hybrid finishing intelligently blends two efficient cutting techniques in a single toolpath. This new toolpath evaluates the model shape and smoothly switches between Constant Z cutting and Constant Scallop machining. The result is a dramatically finer finish with less work.
