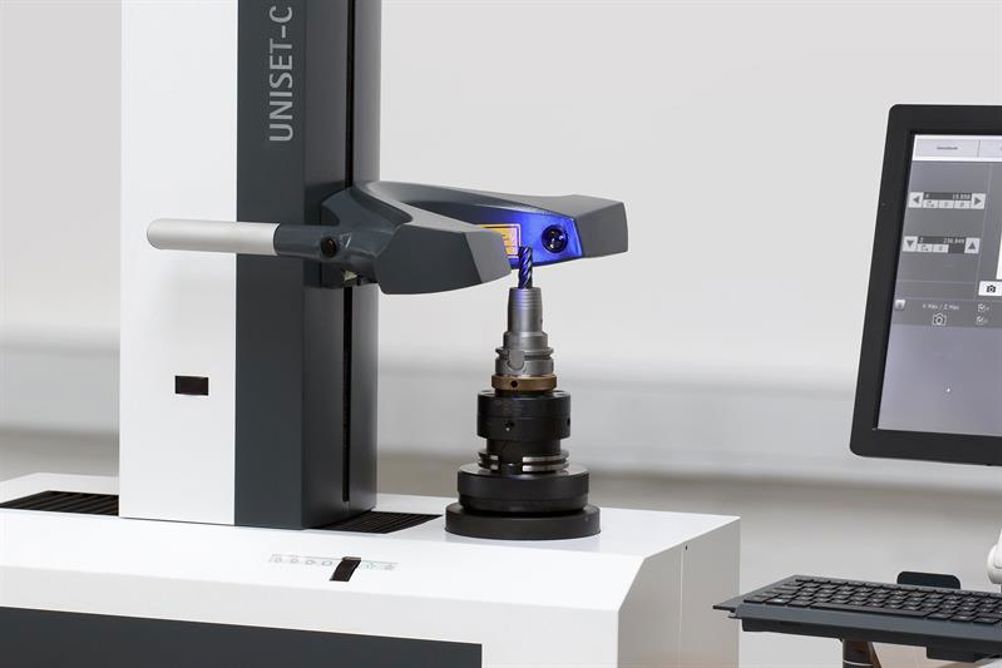

Mapal Uniset-C entry-level optical tool setting system

The Uniset-C setting fixture from Mapal offers simple operation for optical tool setting and measurement in the entry-level equipment segment.

Able to measure tools having a diameter of 400 mm and up to the same figure in length, it has a compact design and offers good access for tool measurement.

The measuring arm with optical measuring camera and dimmable back-light source can easily be adjusted in the horizontal and vertical planes, using a handle. A sensor integrated into the handle activates the laser in the measuring arm when touched. The laser simplifies quick movement to the desired tool position, as the current camera position is always visible as a red dot. Fixed tools such as solid carbide or PCD tools can be quickly and easily measured and set.

The user-friendly software measuring functions already employed in other Mapal setting fixtures have been adapted to the Uniset-C. A greatly simplified operator mode with predefined setting programs for certain tool types makes it easy, even for occasional users. Integrated control geometries allow fully automated measurements to be carried out within seconds. The Balluff system is available as an option for faster calling up or writing of tool data.
