Low-cost routing, engraving, drilling, milling and more

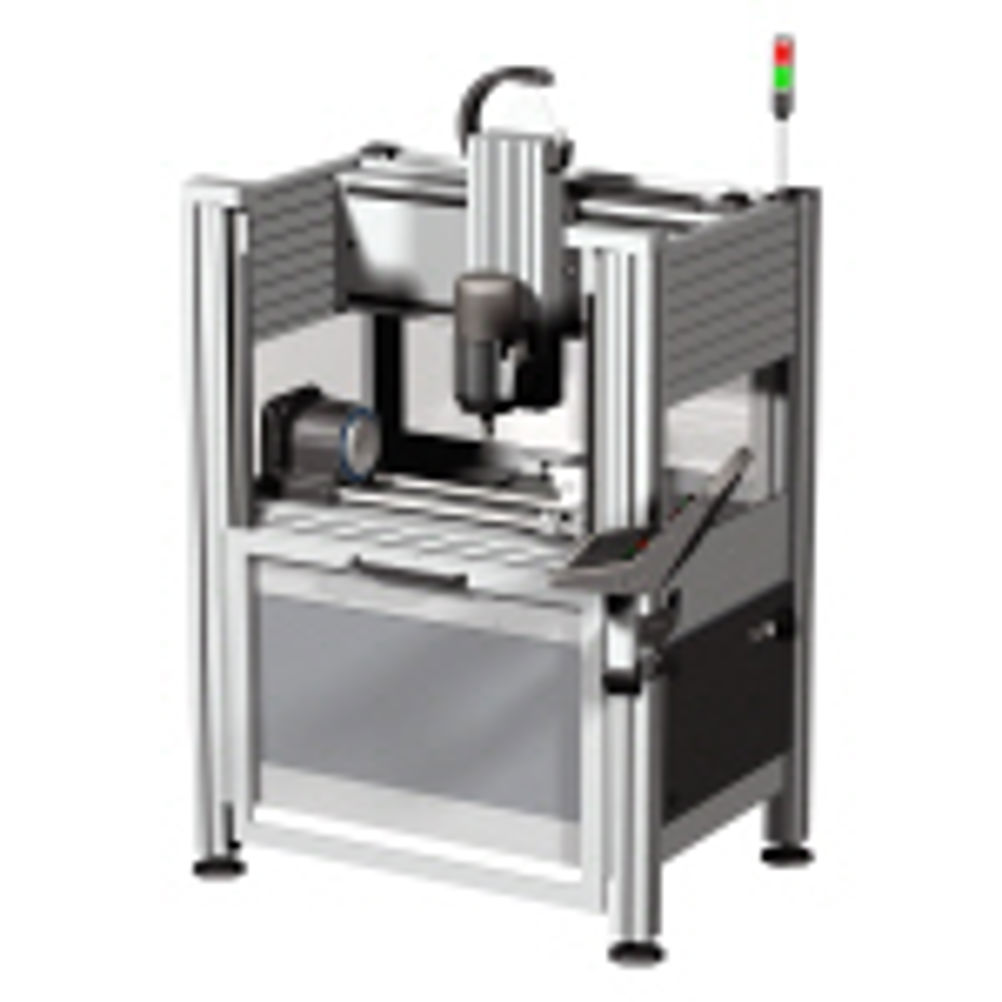

At starting prices under £7,000, EuroMod is a 3-axis high performance servomotor driven CNC machine suitable for routing, engraving, drilling, milling, dosing, signmaking, prototyping and modelling. It is equally adept at dispensing, laser and water jet cutting, soldering and welding, measuring and verifying, sawing and cutting. “What we are offering is a servo driven machine at a stepper price,” says Martin Stevens, MD of Unimatic. “Servo machines are quicker, smoother, quieter, and more accurate than steppers." EuroMod machines are ready to use CNC systems designed to automate a large number of tasks and applications. Rigid, low vibration steel and aluminium constructions provide the mechanical basis for the EuroMod units. The 16 x 5 mm ballscrew drives are high precision to match the performance of the servomotors. A unit needs a floor width of only 1,160 mm. The XYZ dimensions are 800, 1,100 and 1,510 mm respectively.. The complete electronics of the EuroMod, including an integral PC, are enclosed in a control box. Operation is through a control panel with keyboard, 10 in display and touchscreen. Options include a work spindle with frequency converter for high speed operations such as drilling and milling, a tool changer for programmable multi-task operations, cooling / spraying device and fume extraction system, vacuum clamping system, CNC joystick and 17 in CNC control panel.
