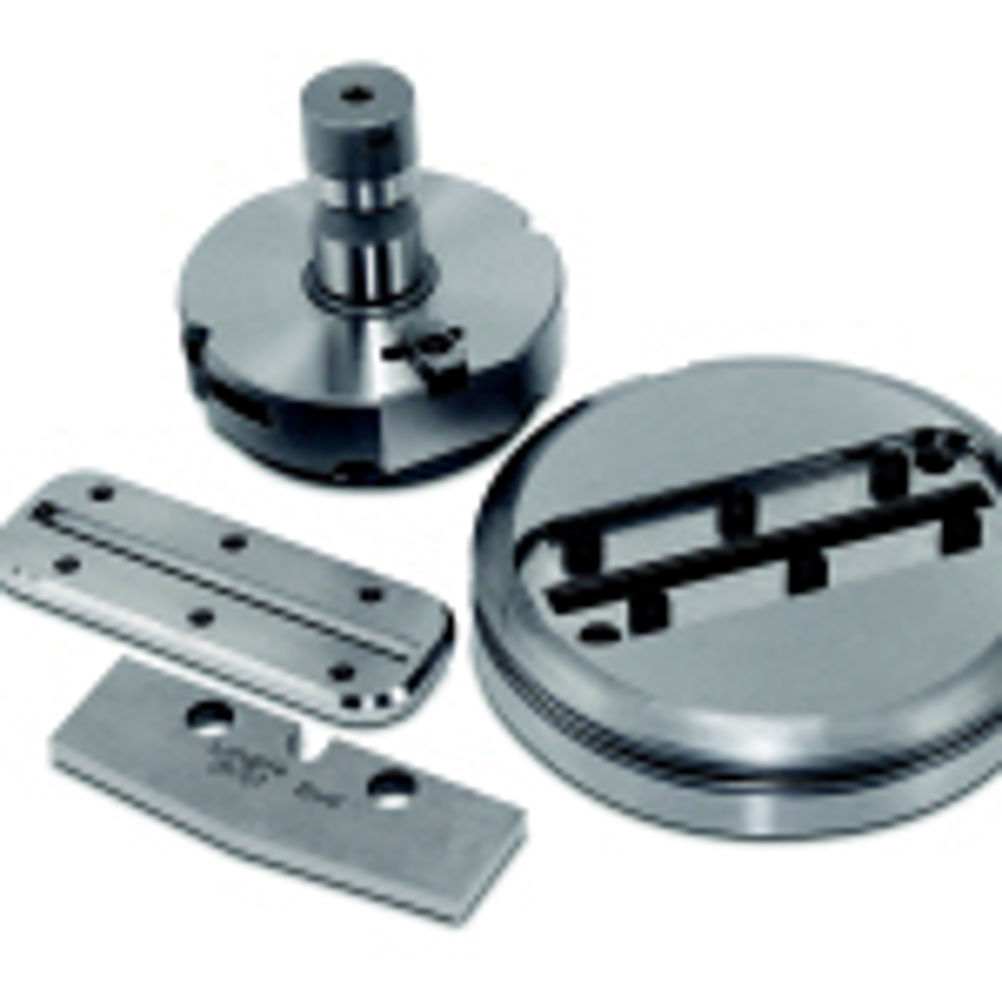

LongLife slitting tool system for Trumpf type punch presses

Fully OEM compatible, Mate LongLife combines premium tool steel punch and die inserts with robust punch and die holders for a cost effective slitting tool solution. The punch inserts are manufactured from premium high speed steel to provide the maximum interval between regrinds. They are available in two standard sizes: 5 by 56 mm and 5 by 76.2 mm. Two insert punch holders are available. One includes an integral alignment ring for fast and precise tool set-up and the other requires a heavy duty alignment ring to allow manual angle setting flexibility. The punch holders work with conventional machine strippers. Die inserts suit up to 3 mm mild steel and are available in two standard sizes, 5 by 56 mm and 5 by 76.2 mm with 0.10 mm die clearance increments from +0.10 to +0.60 mm. The appropriate die insert holders include precise angular orientation at 0 and 90° for maximum flexibility.
