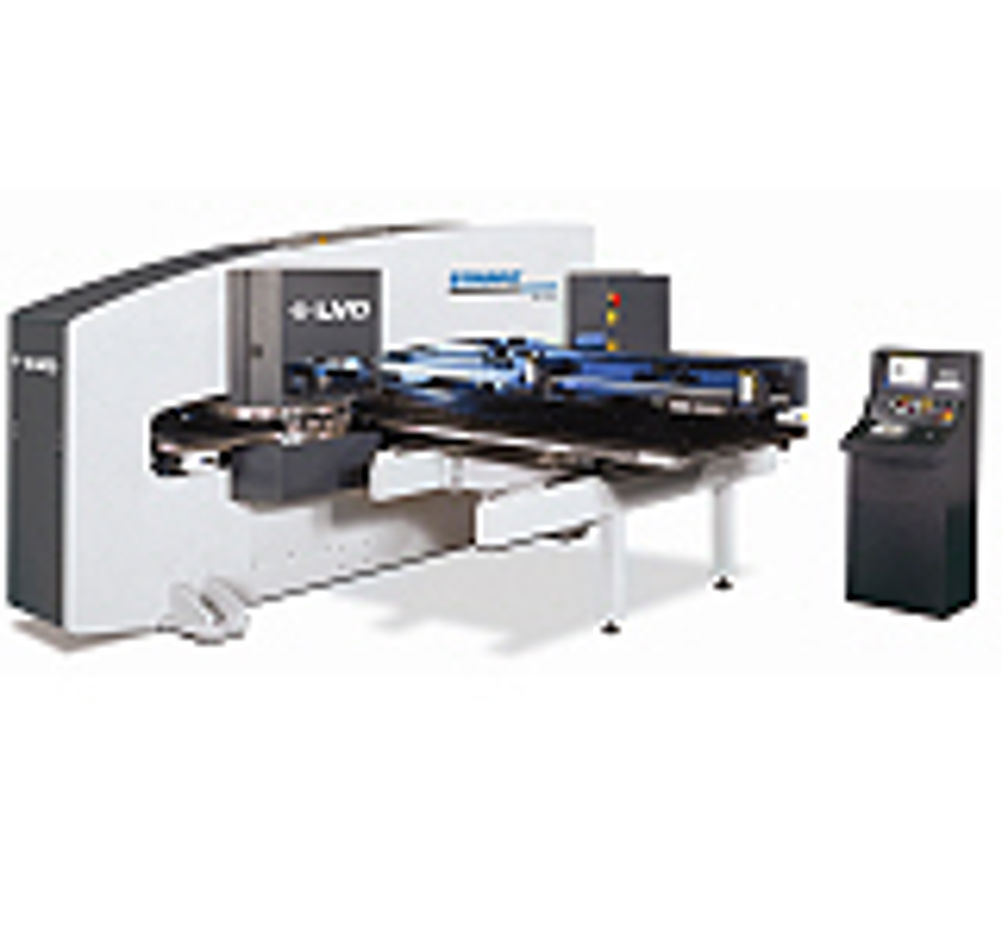

CNC turret punch presses feature 51% more turret capacity

The 47-station turret provides high flexibility and reduces set-up time, increasing machine productivity. Equipped with LVD's Energy Reduction System (ERS), Strippit M-Series punch presses consume up to 30% less electrical power than comparable machines and are less costly to operate and maintain. Designed to minimise the time spent changing tooling, Strippit M-Series punch presses have a versatile mix of turret stations, including three 88,9 auto-index stations and four 50,8 mm stations. Every station accepts shaped punches and dies and can be enhanced with the addition of indexable multi-tools to further expand turret capacity and flexibility while reducing set-up time. Quick-change die holders also minimize tool changeover time. The Strippit M-Series uses all the latest tooling technology, such as special forming tools, wheel-style tooling, tapping and deburring systems. Hardened steel guide bushings and hardened shot pins provide precise alignment of punch and die for exceptional hole quality and long tool life. Bi-directional turret rotation automatically selects the shortest possible route to the next punching station for fast station-to-station positioning resulting in higher productivity. Strippit M-Series machines are equipped with an advanced servo-driven hydraulic press drive optimised for high-performance operation. Axis speeds of up to 380 hits per minute on 25 mm centres and up to 900 hits per minute on 1 mm centers are achieved.
