The set is fully accessorised with products that include: Smartstop for repetitive set-ups; Permajaw, a flip-over ductile cast iron jaw; two newly developed extruded aluminium profiles; and cut-to-any-length flip-over extrusions. Leader says that the expanded Carvesmart system can replace the cumbersome, conventional method of attaching jaws to a vice by means of face-mounted cap screws.

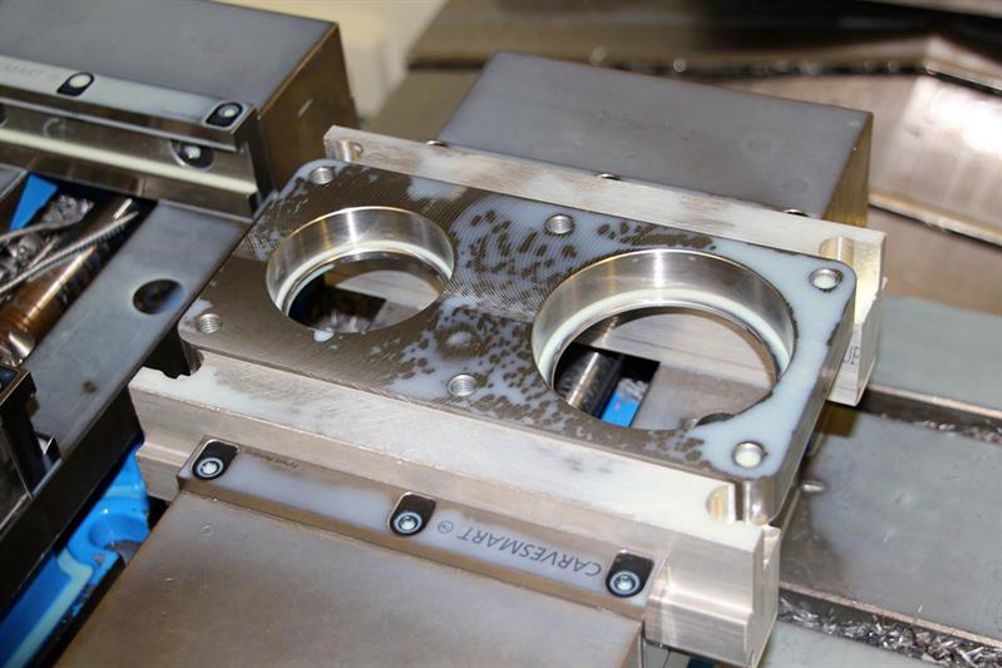

The Carvesmart MJSSG4 4" 4140 tool steel master jaw set is ground flat and parallel within 5 micron. It uses master jaws having a female dovetail profile designed to accept vice jaws with a male dovetail profile. The jaws can be front loaded or slid into the side of the master jaws, and are secured via clamping elements accessible at the top of the master jaws.
