Large capacity CNC turning

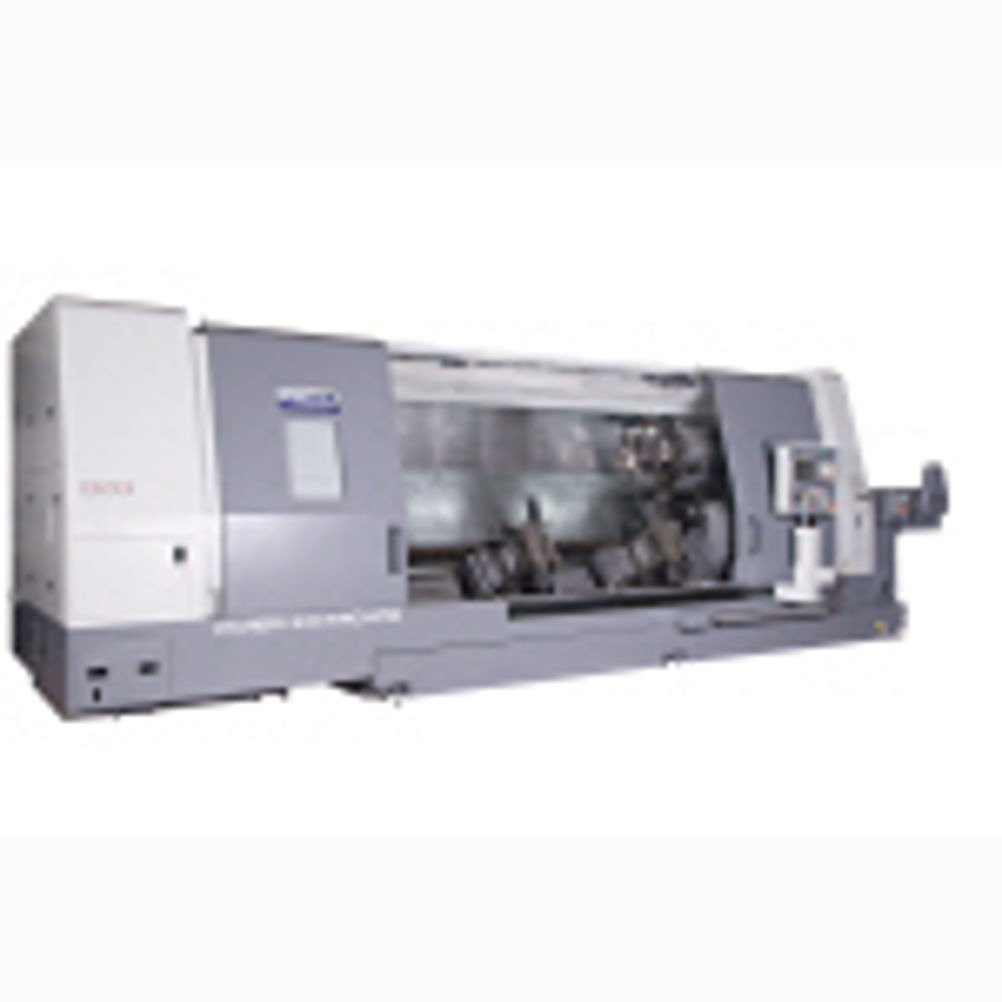

The Hyundai-Kia SKT-700L turning centre is a for large capacity turn-mill for parts up to 900 mm by 3,000 mm.
The SKT-700L and SKT-700LM, with milling, capacity have 1,500 rpm available from the 181 mm bore, three-geared, 45 kW main spindle and, with 610 mm chuck, the machine has a swing over the bed of 1,050 mm, swing over crosslide of 820 mm and a maximum turning diameter and length of 920 mm and 3,250 mm, respectively.
The programmable tailstock has a 132 mm travel, and quill diameter and travels are 160 mm and 132 mm, respectively.
