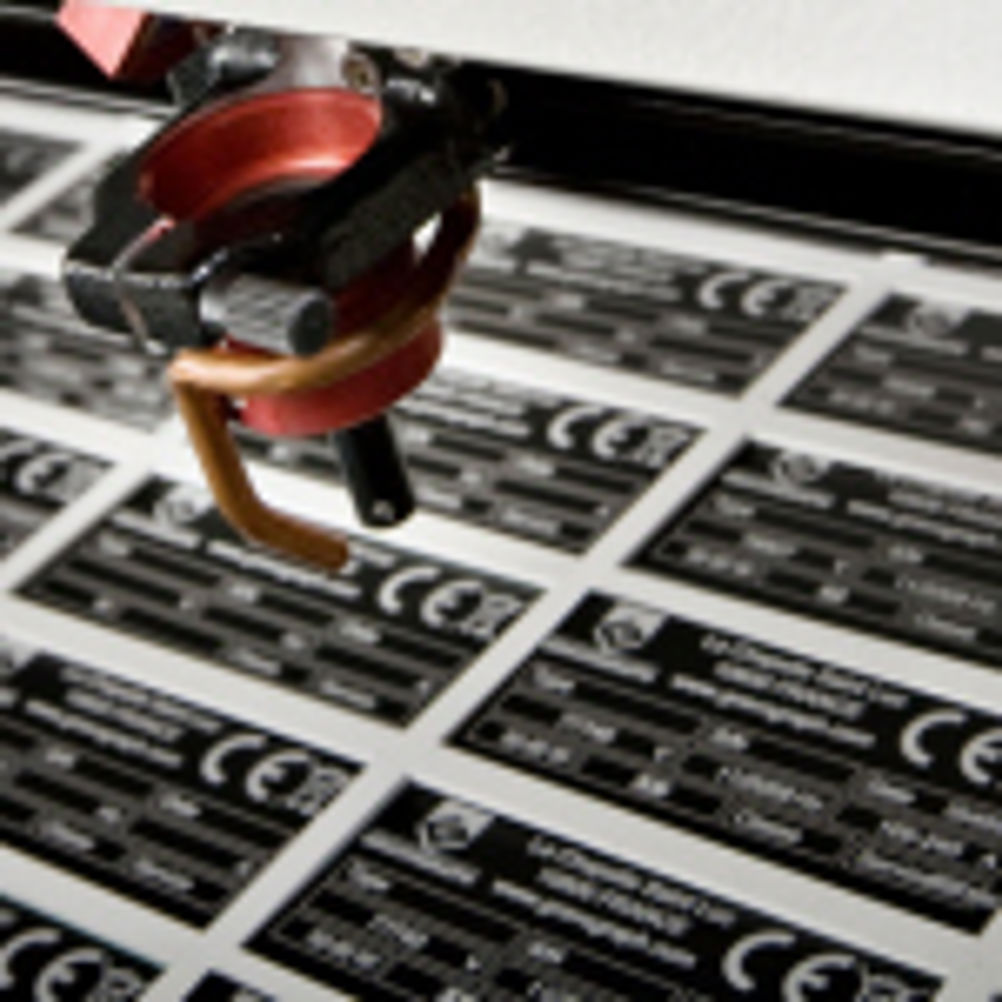

Gravograph's LS100EX YAG laser solution for marking on metals and plastics

The LS100EX YAG solution is controlled using the LaserStyleTM software, an intuitive interface specifically developed by specialists for laser engraving, that features automatic composition possibilities, such as, integration of lists of names and incrementation of numbers, which increases productivity benefits. With its maximum marking speed of 2.5 m/s and a front loading design, which cuts operating times between batches of parts, this laser engraving unit can realise high levels of machine utilisation. The system can mark hard or reflecting materials (black or stainless steel, etc.), as well as, classic materials, and is particularly suited for applications involving personalisation of objects (business gifts, trophies, etc.) and technical marking applications for industrial parts (tools, name plates, instrumentation, metal parts, etc.). Optional accessories include integrated filtering and ventilating systems for smoke and dust, that enable compliance with working conditions for the user and the machine. A wide range of objective lenses are available, plus indexing supports for engraving on cylindrical and conical objects 3 to 130 mm in diameter. A suction table can be fitted for marking thin, flexible materials.
