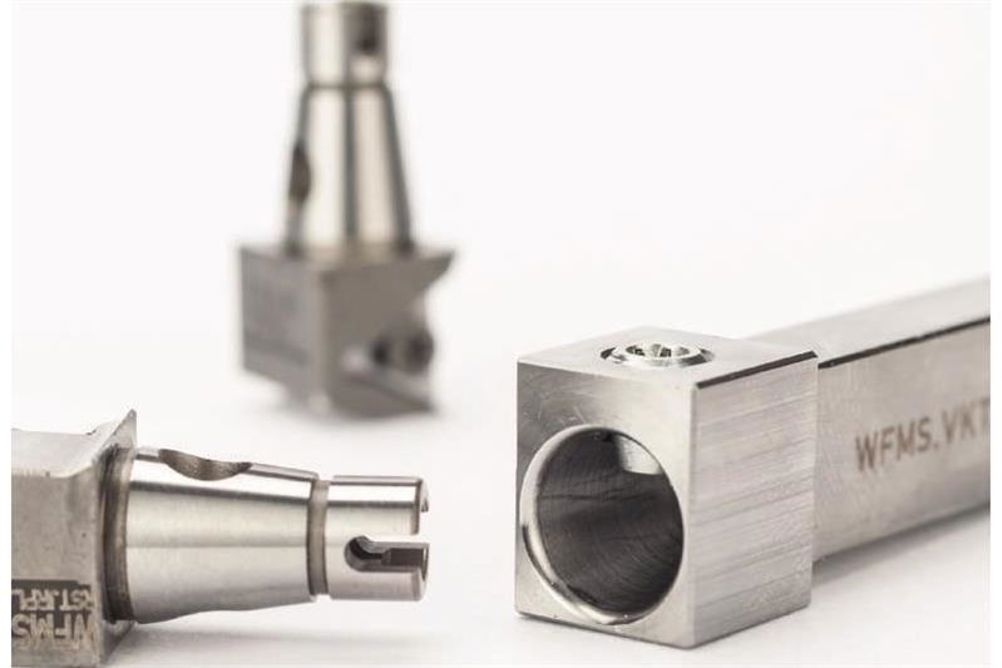

Toolholders remain in the machine while the head can be removed with a single screw. The W&F Micro series employs face and taper contact technology to guarantee precision repeatability of 0.002 mm while also supporting fast tool change that is suitable for use with preset tooling systems.
A wide variety of head types is available that can be specified for general turning, facing, profiling and parting, as well as internal profiling and boring operations. Left- and right-hand formats can be selected, with through-coolant available upon request.
The toolholders come with an 8 by 8 mm, 12 by 12 mm or a 16 by 16 mm square shank and with an overall length of 80 mm.
