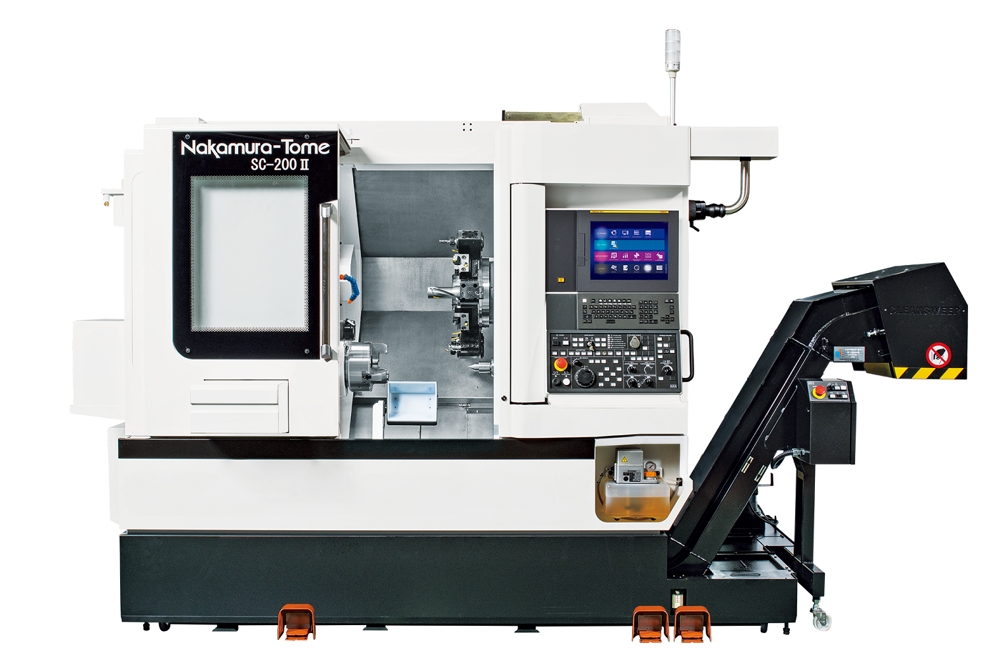

The SC-200II is an extremely rigid single-turret multitasking lathe that can perform powerful and stable machining – even under the most challenging of conditions. Despite the machine being in the 8” chuck size class, it has a maximum turning diameter of 390mm and a swing over the bed of 700mm diameter, providing an exceptionally large machining area for a small footprint machine. This also enables the machine to accommodate a 10” chuck.
The output of the spindle motor has been increased to 15/11kW with the option of an 18.5/15kW motor, making this new addition far superior to its predecessor. In addition to the improved spindle motor output, the bar capacity and Y-axis travel have also been enhanced to give the new machine the ability to accommodate a higher machining capacity.
The predecessor of the SC-200II, the SC-200 won plaudits from the industry and it was the excellent reputation from customers that persuaded Nakamura to evolve this ‘class-leading’ machine into a more flexible and powerful multitasking lathe.
The high acceleration of the SC-200II permits the operator to machine larger parts and expand the scope and variety of components considerably. Moreover, the machine has a new frame structure that improves rigidity, performance, surface finishes and precision.
Commenting upon the new arrival to the Nakamura-Tome stable, Nakamura CEO Shogo Nakamura says: “The SC-200II is a multitasking lathe that realises ‘Next Level Machining’. We have added refinements to reduce the burden and simplify operations for workers. I believe that process integration will be familiar to many factories because of the evolution of single-turret machines. I hope that more customers will experience the ease of use.”
With a maximum turning diameter of 390mm and a 510mm distance between spindles, the new SC-200II can accommodate bar diameters of 65mm (71mm optional). For further information on this compact and powerful multi-tasking workhorse, contact the Engineering Technology Group (ETG).
