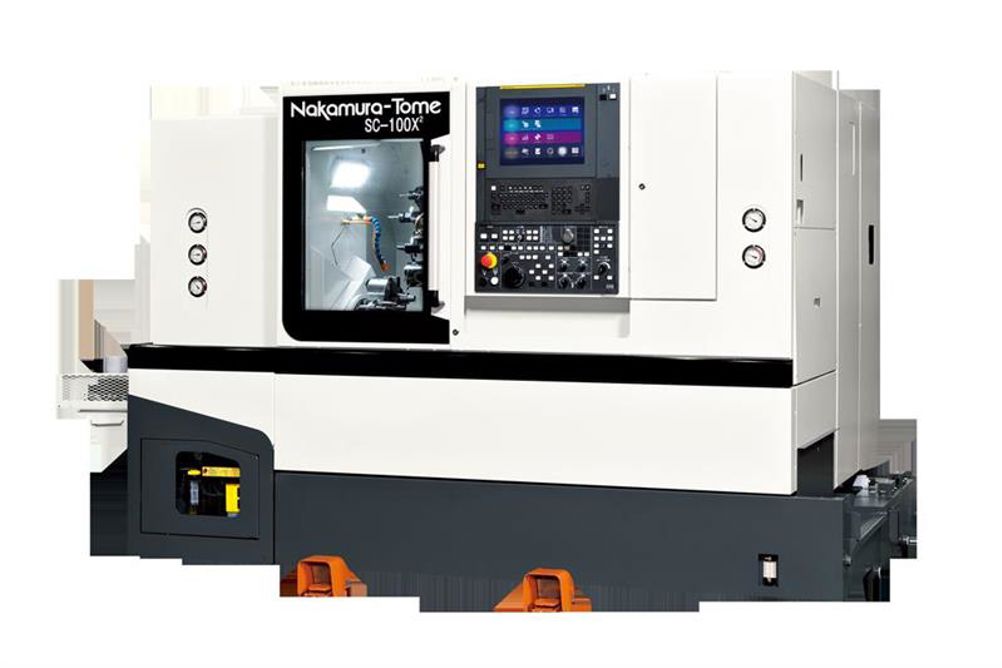

Nakamura has developed the new SC-100X2 twin-spindle twin-turret turning centre as an advancement upon its predecessor, the SC-100.
With high-speed efficient one-hit turning being the core philosophy of this new machine, the SC-100X2 is 41% faster than the previous SC-100 machine. This is a credit to the sub-spindle X-axis and the lower turret that deliver greater flexibility and performance.
Furthermore, this new edition demonstrates extremely fast and efficient programming with Nakamura’s intelligent software NT Thermo Navigator AI and Smart Support. In addition, the standard X and Z-axis on the right-hand spindle enhance simultaneous machining through overlapping control between the left and right-hand spindles. The X and Z slide travel on the right-hand spindle is 150mm and 400mm respectively.
The 51mm bar capacity machine has a maximum turning capacity of 230mm diameter with a maximum turning length up to 400mm with the facility for a 6-inch chuck on both spindles. As expected from Nakamura, the new SC-100X2 demonstrates class-leading power and speed with an 11/7.5kW 6000rpm main spindle and a 7.5/5.5kW 6000rpm sub-spindle.
This power and speed are complemented by an equally impressive milling spindle that generates 7.1/2.2kW for machining the most challenging of materials and components. This machining performance is assured from the 6,500kg weight of the new Nakamura-Tome SC-100X2 that demonstrates unparalleled stability and rigidity for machining the most difficult of components.
