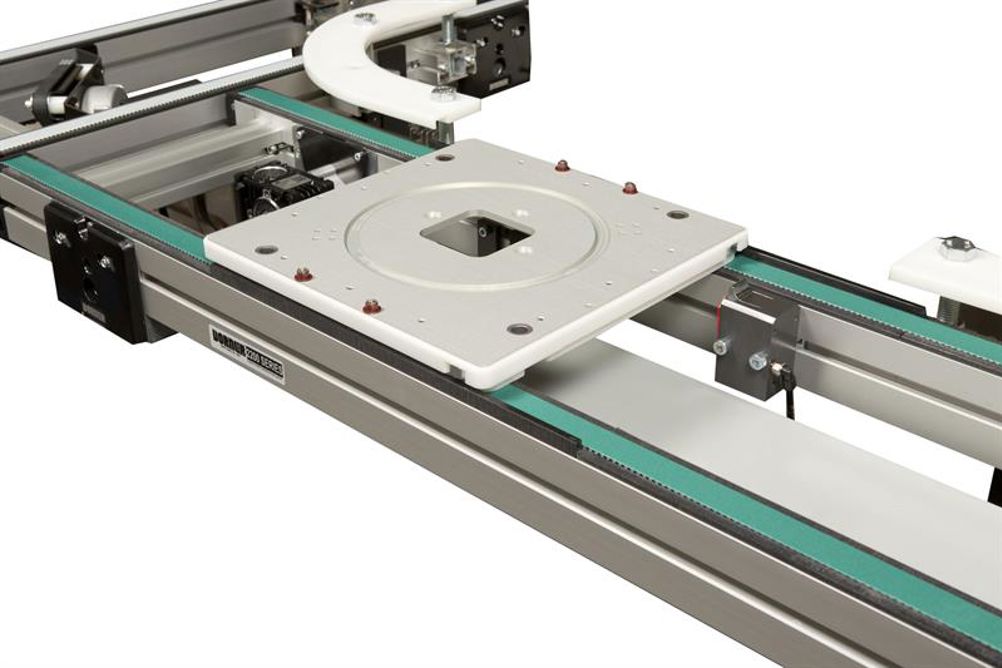

The pallets range in diameter from 160 to 480 mm, giving the flexibility to select the proper size to move the product. During operation, pallets move on twin, dual strand timing belt conveyors. The design provides many benefits, including added load capacity in a small platform (up to 113 kg accumulated), lengths up to 7,500 mm, and clean room Class 100 certification on the conveyor.
Applications include machine integration, robotic pick-and-place, precision indexing, accurate part positioning, timed conveying and inspection.
