Compact turning centre from Haas Automation
1 min read

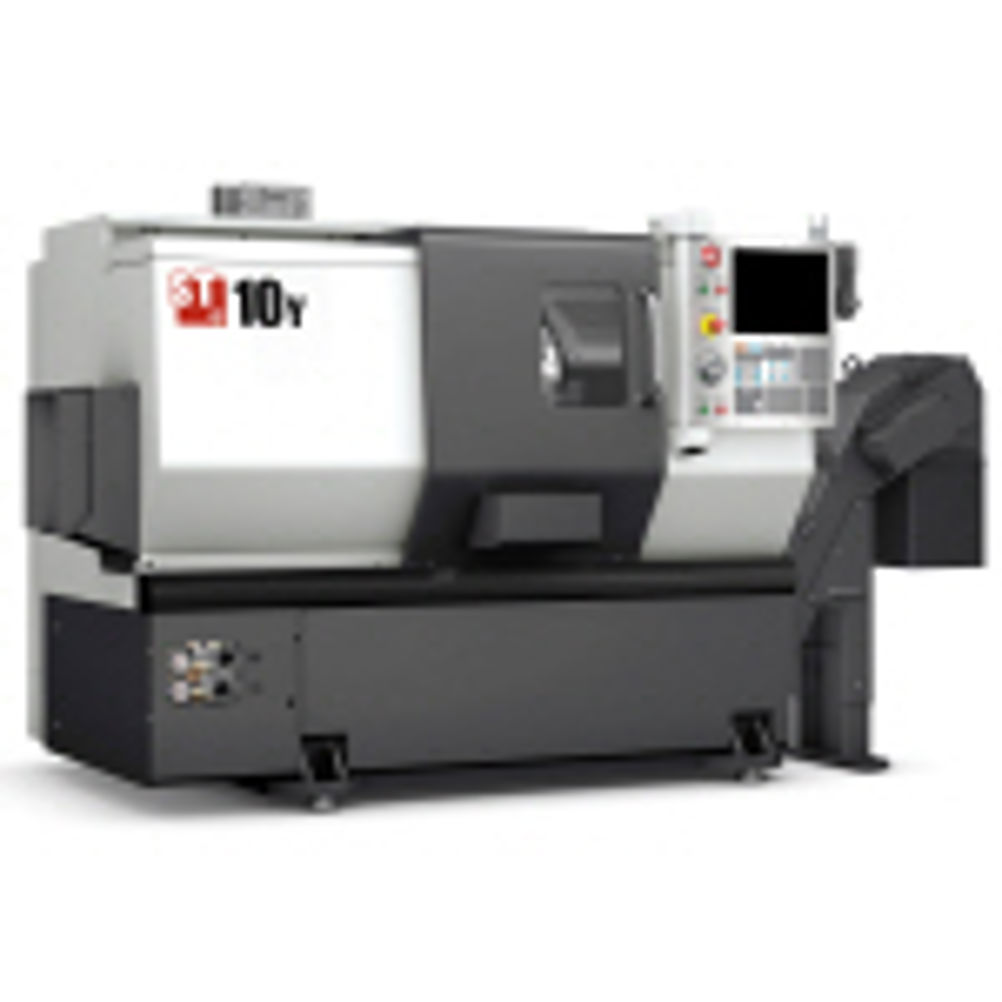

The Haas ST-10Y is a small-footprint Y-axis turning centre that provides 100 mm of Y-axis travel (±50 mm from the centreline) for off-centre milling, drilling, and tapping, and comes standard with high torque live tooling and a servo-driven C-axis for versatile 4-axis capability.
The ST-10Y provides a maximum cutting capacity of 228 by 335 mm, with a swing of 413 mm over the cross slide. It is equipped with a 165 mm hydraulic 3-jaw chuck and a 12-station VDI turret. The ST-10Y's A2-5 spindle nose has a 58.6 mm spindle bore and a bar capacity of 44.5 mm. The machine's 15 hp vector dual-drive spindle turns to 6,000 rpm, and provides 102 Nm of torque at 1,300 rpm. On-the-fly wye-delta switching yields a wide constant-horsepower band for constant surface feed cuts, and rapids are 30.5 m/min on the X and Z axes.
Standard equipment on the ST-10Y includes high-torque live tooling with C-axis, rigid tapping, spindle orientation, a 15 in colour LCD monitor, and a USB port.
High productivity options include: a belt-type chip conveyor; a manual tailstock with hydraulic quill; an automatic tool probe; an automatic parts catcher; and high pressure coolant systems.
