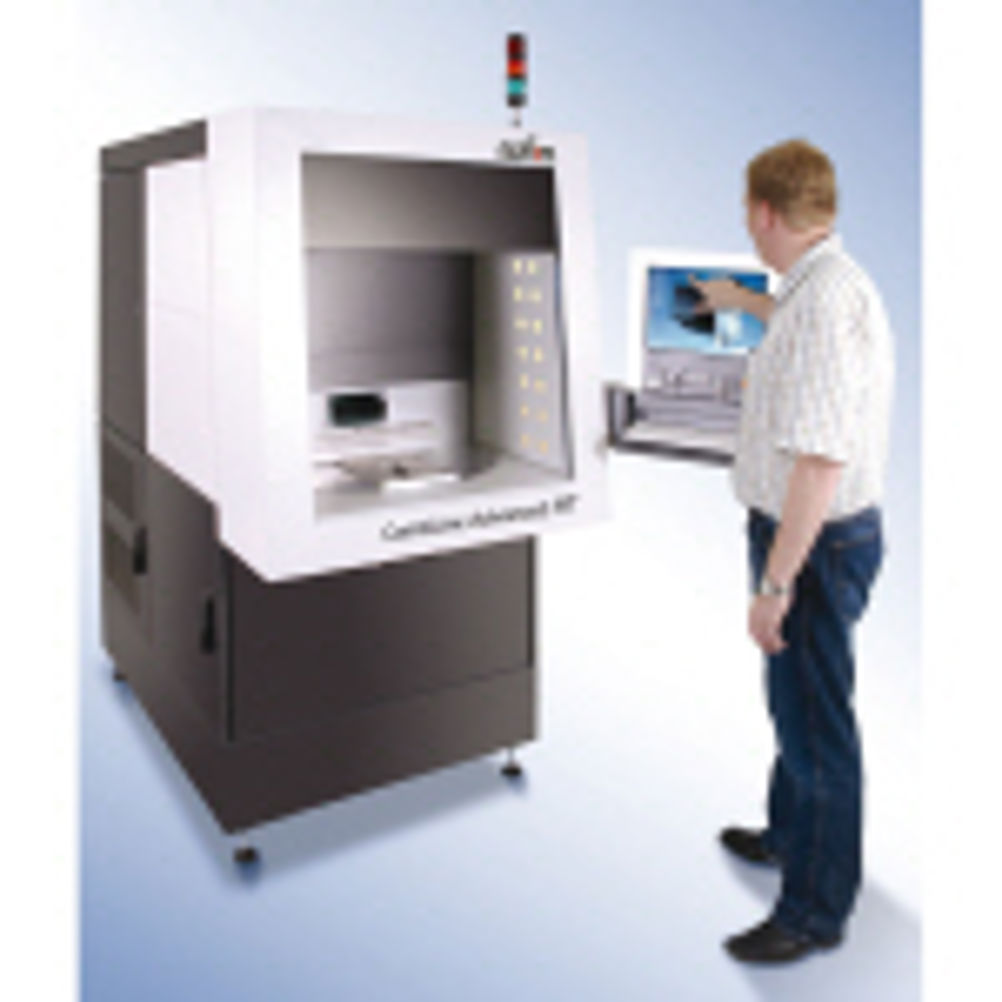

CombiLine Advanced all purpose laser marking workstation

The CombiLine Advanced is a robust and stable laser workstation designed for small and medium batch sizes. The system is available in two different configurations (WT) and (RT). The WT variant incorporates a static worktable which has a load capacity of up to 100 kg and it can accommodate a workpiece of 760 by 500 by 600 mm. The RT variant is supplied with a fully integrated 800 mm diameter rotary table system that has a load capacity of 10 kg on each side. This enables the system to laser mark a component on one side of the table while the other side of the table can be unloaded and re-loaded. This not only saves cycle time but also provides easy access for loading and unloading. The rotary table index time is only 1.2 sec. The CombiLine Advanced has a useful working envelope thanks to the 300 mm of travel available for the laser head and beam deflection unit, from each of the integrated linear motion stages. The WT variant is supplied with 3 axes (X, Y and Z) while the RT variant has 2 axes (X & Z). The system can be further configured for even greater flexibility by adding one or more of the optional linear and rotary axes that are available. The addition of the rotary axis enables the system to laser mark around the circumference of cylindrical parts. With a wide choice of laser sources is available from Rofin’s extensive range, the system can be configured for a broad range of applications and materials.
