Bowers' multi-purpose, universal hardness tester

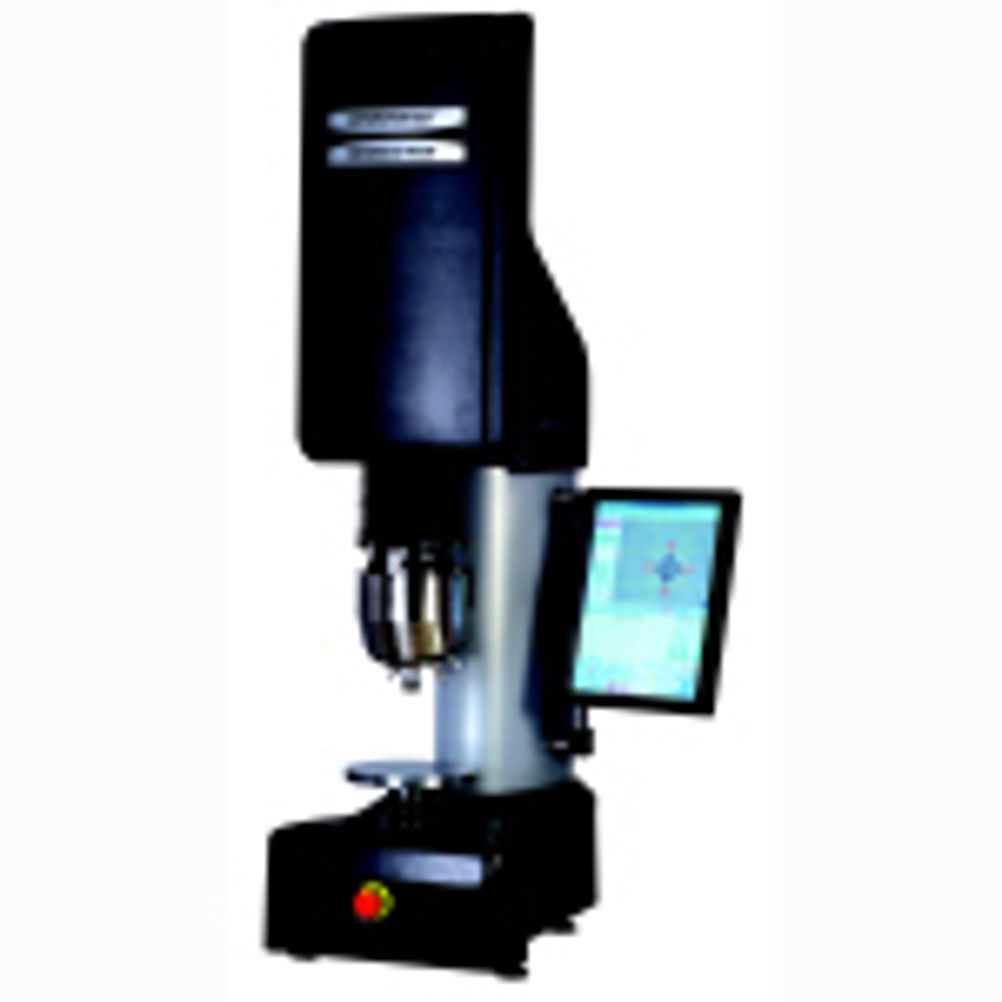

Using innovative new technology, the Nemesis 9000 Series of multi-purpose hardness testing instruments is based on the application of advanced mechanical and electronic components and a high resolution video vision system. Featuring a modern design with improved ease of access for large components, Nemesis 9000 is said to provide the user with a superior level of precision, combined with high definition imaging, creating an almost unlimited field of application. Using a load-cell, closed-loop, force feedback system, Bowers' new hardness tester range is capable of manual or full scale automated operation. The flexible tester is suitable for a wide range of applications, including: Vickers (HV); Knoop (HK); Brinell (HB); Rockwell (HR); Vickers depth measurement; Brinell depth measurement; and Ball indentation hardness. The Nemesis 9000 Series boasts a wide range of test-load/force applications, ranging from 500 gf to 3000 kgf. The range features descending test heads with automatic workpiece detection and free definable, manual or motorised six-position turrets, for objectives and indentor choice. A large, adjustable 15'' industrial touch screen, or 22'' LCD screen with mouse is provided. A high-definition Innovazoom optical system, providing images of 0.7x to 1000x magnification, is also supplied as standard.
