Batch cleaning system from Dürr covers wide application range.

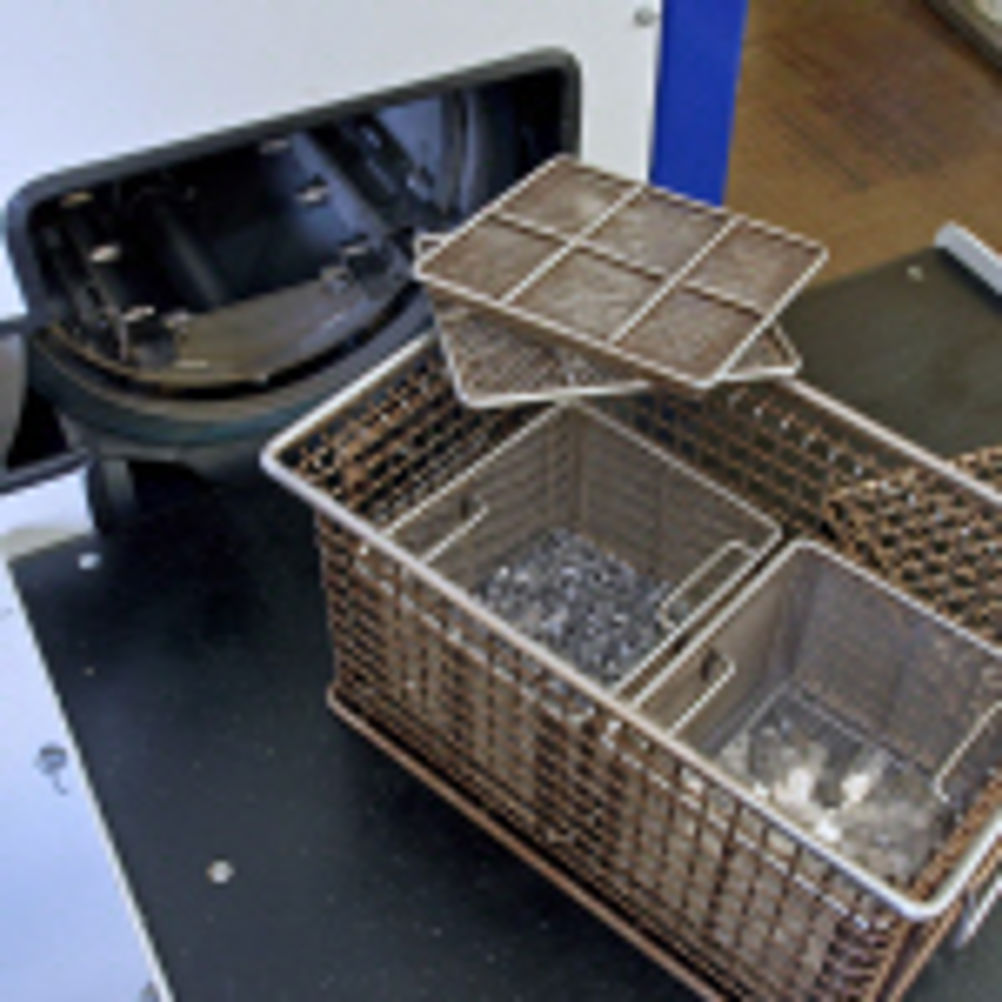

Designed for fine cleaning applications and capable of cleaning to "Class 1" specifications, the new EcoCMax single-chamber aqueous system from Dürr Ecoclean (Geo Kingsbury) is a three-stage cleaning and degreasing process, including hot air drying, that takes place under vacuum in a stainless steel work chamber. Baskets of components weighing up to 150 kg are loaded manually or automatically from the front. The cleaning program can be adjusted to accommodate a wide range of workpiece contamination from removal of heavy soil through to fine cleaning. It means that if different parts need to be processed, or there is an alteration in the degree or type of soiling, or if a higher standard of cleanliness is required, EcoCMax can be adjusted easily to accommodate the changes. This is achieved through flexible application of spray washing, injection flood washing and ultrasonic cleaning, individually or in combination. Furthermore, treatment of the cleaning fluid is consistently high. Full-flow filtration during filling and emptying of the chambers, along with continual high-flow-rate bypass filtration for the flood tanks, ensure stable wash quality and thus reliable cleaning results.
