CNC turning centres under power at MACH 2010 from Ward CNC

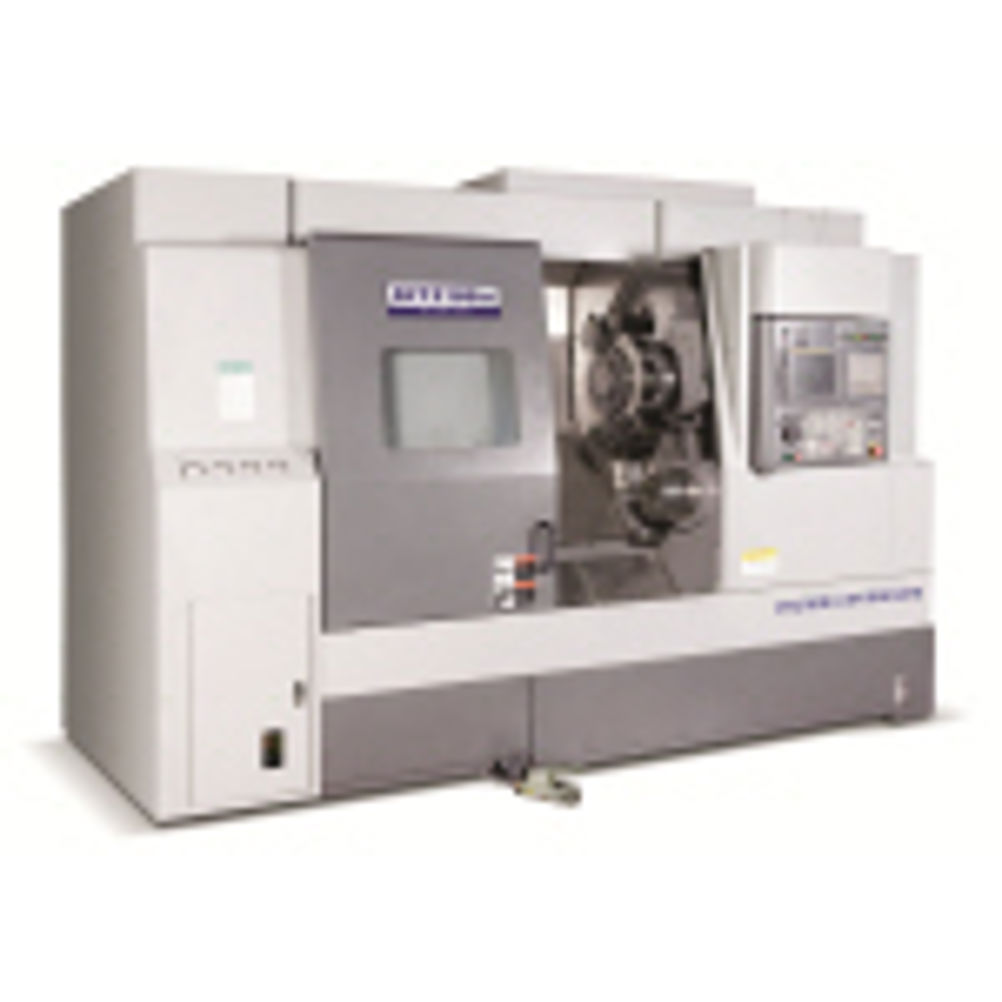

Being demonstrated under power, the Hyundai-Kia SKT 180 TTSY CNC turning centre with Y-axis has a maximum 230 mm turning diameter and 700 mm length. The 65 mm bar capacity machine has spindle speeds of 5,000 rpm and boasts a 12-tool station on each turret. Also under power, the SKT 2100 multi-tasking mill-turn centre with Y-axis has a maximum 240 mm turning diameter and 530 mm length. This 65 mm bar capacity machine has spindle speeds of 4,000 rpm (main spindle), 6,000 rpm (sub-spindle) and features a 12-tool station turret. Also under power, the 65 mm bar capacity SKT-200 2-axis lathe has a maximum 290 mm turning diameter and 300 mm length, with spindle speeds of 4,000 rpm from a 15 kW motor. The SKT-400LC 2-axis lathe has a maximum turning diameter of 630 mm and length of 2,150 mm. This 117 mm bar capacity machine has spindle speeds of 2,000 rev/min from a 37 kW motor. The Hyundai-Kia SKT-300 2-axis CNC lathe has a maximum turning diameter of 560 mm and length of 720 mm. This 90 mm bar capacity machine has spindle speeds of 2,500 rpm from a 26 kW motor. The Hankook Protec 9NC x 4000 heavy-duty flat bed lathe. This large-capacity machine has a maximum turning diameter of 950 mm and length of 3,845 mm, with spindle speeds of 630 rpm from a 30 kW motor. Completing Ward CNC's turning display, and also under power, will be the Hankook VTC-100 compact, high-performance vertical lathe. This has a 1,000 mm diameter table and a maximum turning diameter of 1,250 mm and height of 800 mm. The machine can accommodate workpieces weighing 4,000 kg, has a 30/37 kW main motor and an ATC of 24 tools. [Products covered: CNC turning centres, lathes]
