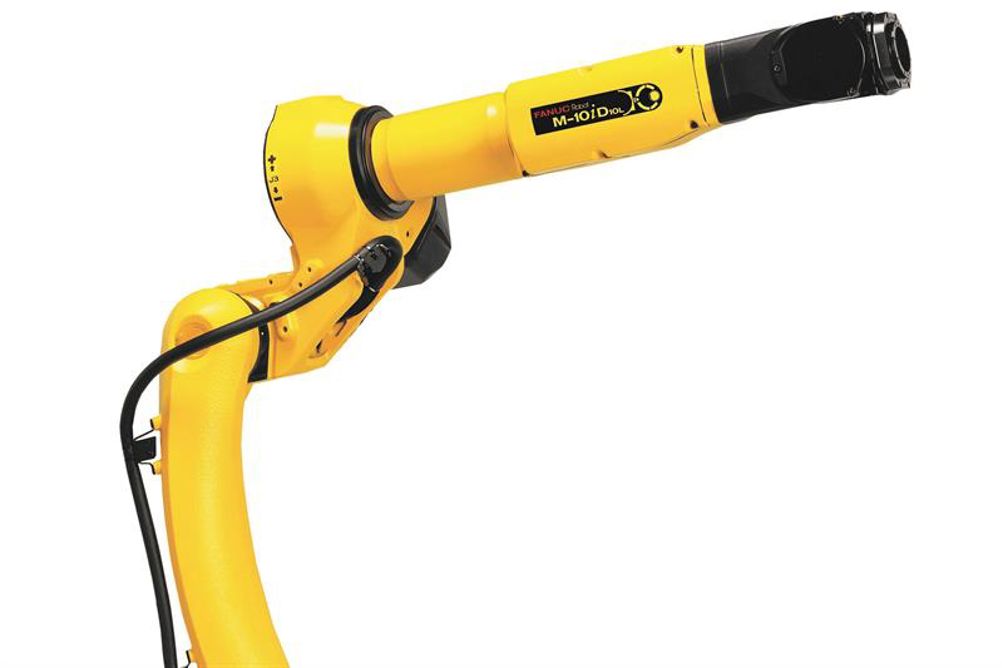

With a footprint of just 343 by 343 mm, the M10iD/10L is pitched at compact production line installations and is fully articulated to reach narrow spaces in machine tools or jigs.
As with other models in the M-10 series, the M10iD/10L benefits from a hollow arm, wrist and body, which facilitate the easy routing of internal cables. Not only does this design make the robot straightforward to integrate and modify, but – coupled with a slim J2 curved arm – reduces any interference with peripheral devices and work cell equipment.
FANUC says that the 6-axis robot has one of the highest axis speeds in its class, with a maximum speed of 720°/sec, and a repeatability of ±0.03 mm. The M10iD/10L also facilitates intelligent maintenance schedules thanks to FANUC’s Zero Down Time condition monitoring software, which is able to predict the status of mechanical and process equipment.
