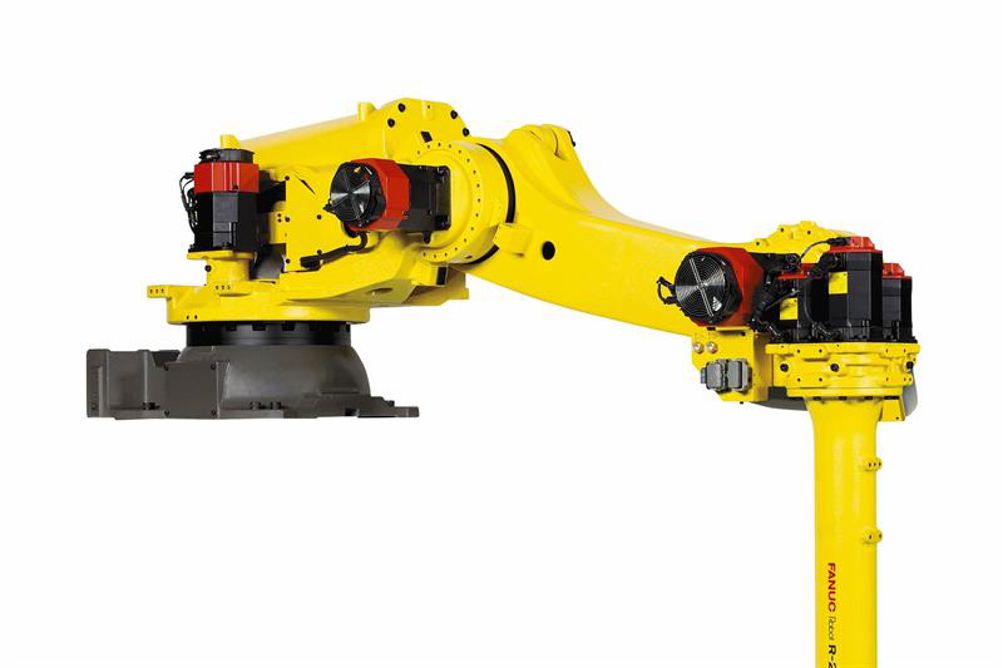

The long, slender arm gives the robot a reach of up to 3.54 m, and facilitates cable routing and dress-out. Fanuc’s R2000iC/100P also features motor fan cooling systems, which allow it to perform continuous, high duty cycles with a repeatability of ±0.05 mm. The robot has a maximum axis speed of 210°/sec for shorter SPM (standard press motion) cycles.
Serving production lines handling larger parts, the six-axis robot offers high wrist moments and inertias of up to 1,000 Nm/227 kgm2. The robot itself can handle a maximum load of 100 kg.
As with the other models in the R2000iC series, the R2000iC/100P can be integrated with Fanuc’s latest software tools, including Dual Check Safety, iRVision and Learning Vibration Control.
