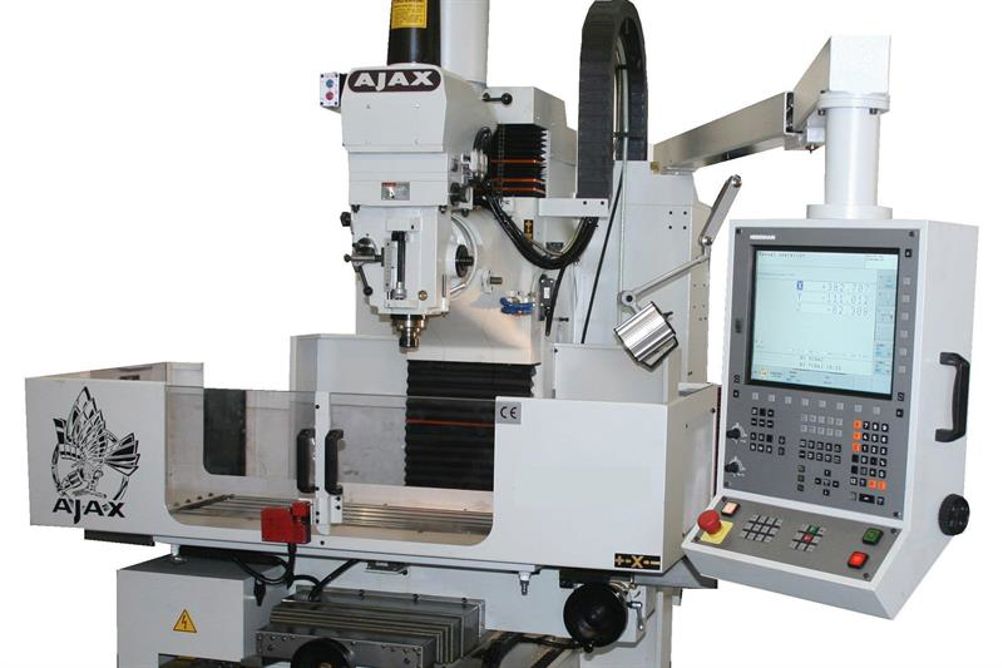

With all the advantages of a full CNC machining centre, the 4-tonne, ISO40 spindle AJCBM1000 can mill, drill, bore and tap, providing 3-axis interpolation, without the confines of a fully enclosed work envelope.
The AJCBM1000 has 1,000 by 500 by 500 mm movement in X, Y and Z axes, and is capable of supporting workpieces up to 800 kg, while the 7.5 hp motor provides a high level of torque throughout the speed range of 50 to 4000 rpm. (AJCBM bed mills are available in eight models, ranging from 720 to 3,000 mm in X-axis.)
As with all machines from the Ajax stable, the AJCBM1000 is assembled at Ajax Machine Tools’ Lymington, Hants, headquarters, where a team of experienced engineers provide a bespoke assembly service. This allows customers to choose a range of options that includes the choice of CNC controls from Heidenhain, Fanuc, Fagor or Siemens.
Says UK sales manager Ian Fenton: “All our machines are Renishaw laser calibrated to demonstrate that every machine installed is calibrated to a precision level that is better than the ± 10 micron range that appears in some of our literature. In reality, the AJCBM1000 machines are closer to a 2 to 3 micron calibration level. A figure that is unheard of in the market where these machines are sold. We want to supply the best machines that we possibly can, and the precision and build quality of the AJCBM1000 is unsurpassed in the bed milling segment.”
