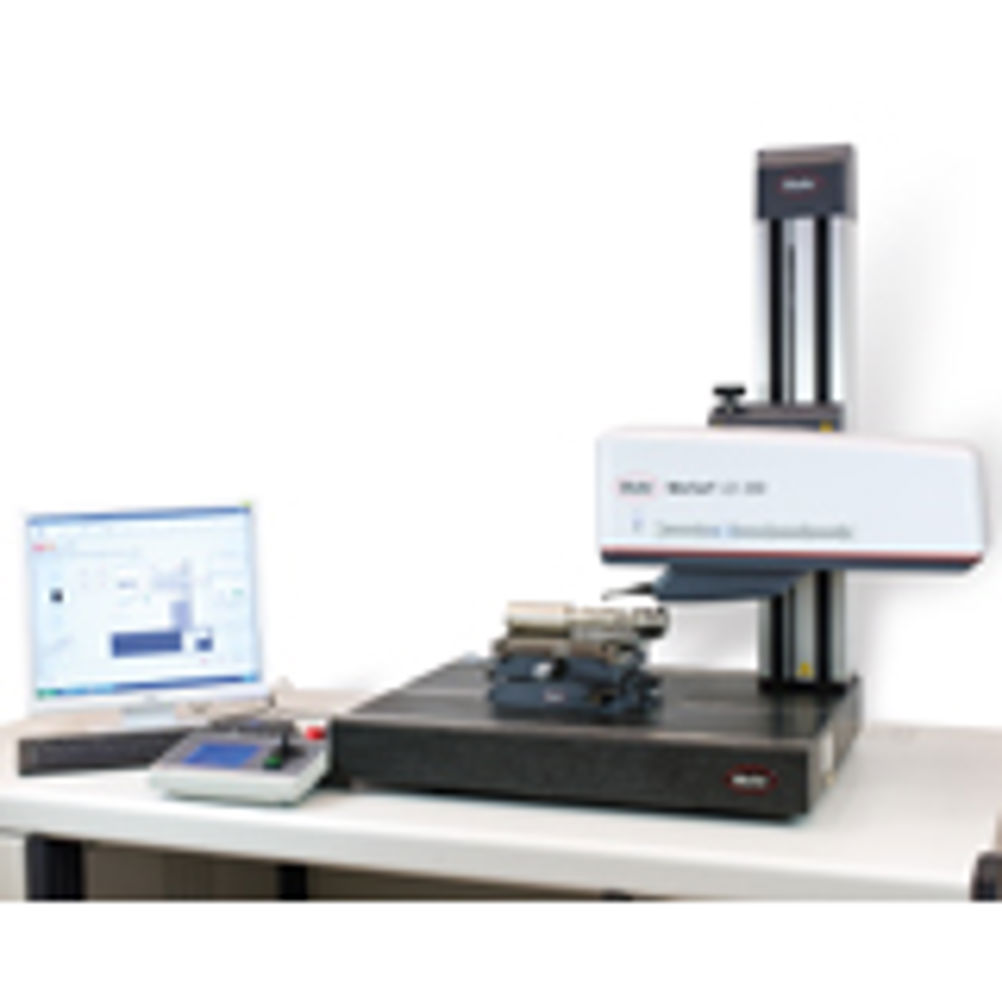

MarSurf LD 130 /LD 260 - the step into a new dimension

Combined contour and roughness measurements 'in one stroke' can be comprehensively solved with proven top metrology from Mahr. The measuring stations MarSurf LD 130 and LD 260 are characterised by the consistent further development and integration of experience from the first generation. Excellent metrological features, high measuring and positioning speeds and innovative probe system technology are only a few of the exceptional advantages of this measuring system.

• High measuring and positioning speeds • Long measuring paths, large measuring stroke • Innovative probe system with bionic probe arm design • Probe arms with magnetic holder and probe arm recognition • Service-friendly due to modular design Measuring tasks for different applications increasingly demand the combination of contour and roughness measurements. To meet this need, the unit must deliver a high level of metrological performance. Resolutions in the sub nanometer range, as well as residual noise of < 20 nm Rz are just some of the requirements. With the measuring units MarSurf LD 130 and LD 260 the successful product line of the combined roughness depths and contour metrology MarSurf LD 120 from Mahr is set forth. The proven and winning benefits of MarSurf LD 120 such as: probe arm holder, automatic probe arm changing device, dynamic measuring force regulation between 0.5 mN to 30 mN, as well as the market leading software platform MarWin for all products, were maintained. In addition, the MarSurf LD 130 / LD 260 is characterised by important expansion that bring enormous potential for improvement in the measuring room, production and in automatic CNC-measuring procedures. Roughness and contour in one stroke Essential features of MarSurf LD 130 / LD 260 High measuring and positioning speeds considerably minimise the measuring times Positioning speed up to 200 mm/s Measuring speek up to 10 mm/s Innovative probe system solution Bionic probe arm design and new material provide great rigidity, lower vibration behaviour, higher dynamic. Faster and reliable probe arm exchange with simultaneous probe arm recognition with magentic holder and reliable recognition, due to chip located in the probe arm. Long measuring paths up to 260 mm (MarSurf LD 260) with a measuring stroke of 13 mm (for 100 mm probe arm length) or 26 mm (for 200 mm probe arm length) To find out more about the MarSurf LD, click here
